UBRAIDS II

Github

8hp version of Braids.

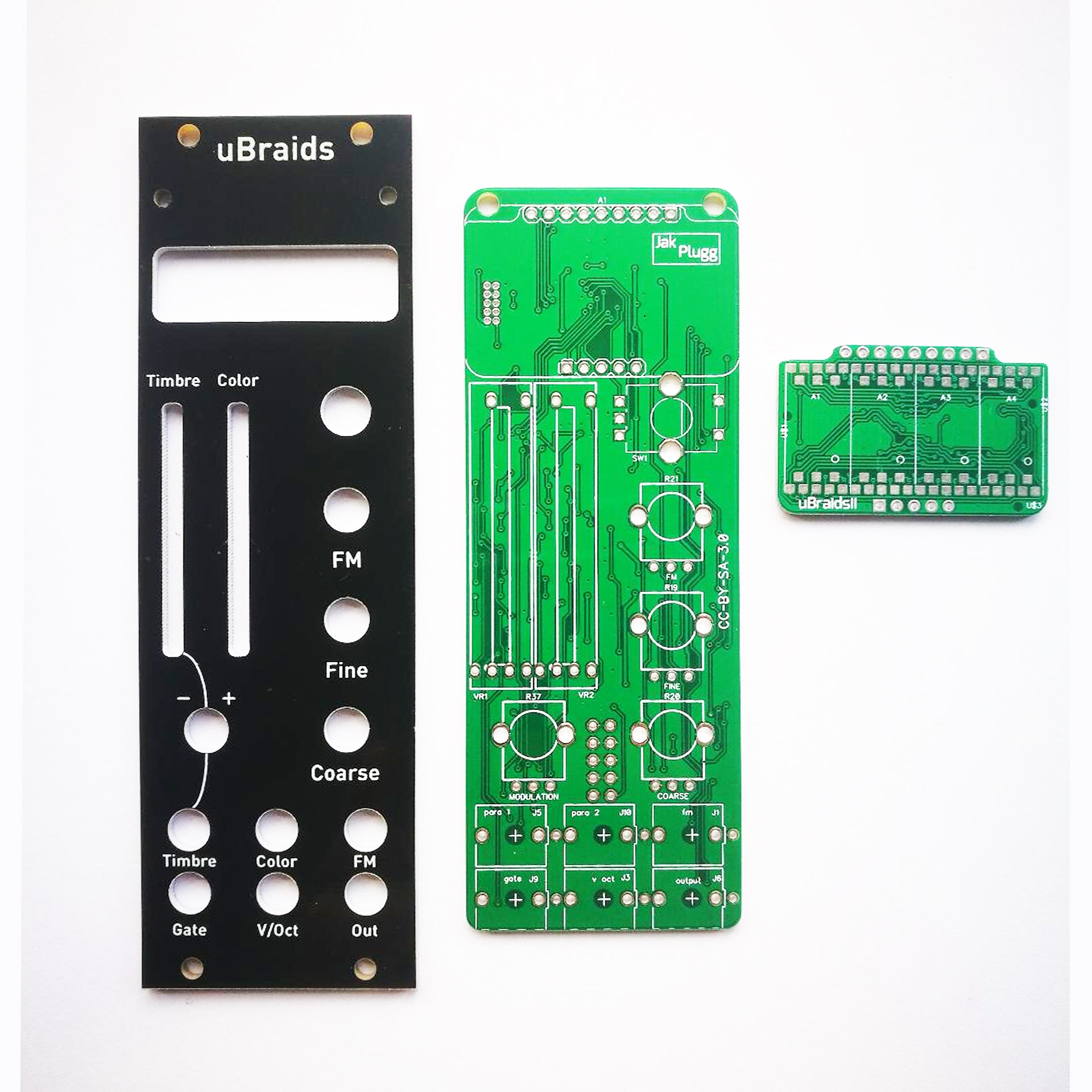

PCB redesign by J. Matheson. it works with the same firmware, added LED sliders for the 2 oscillator parameters, and drivers to indicate input CVs

Google sheets BOM

First there was uBraids, the uModule that started all this uInsanity, then Talldog's uBreaids SE, with a better display and no AVR programming, now with the same good display and a new easy to use layout, uBraids II! the main board is easier than the original uBraids, but the display board might be a bit difficult for those new at SMT soldering,
