U3A

Intellijel 1U format

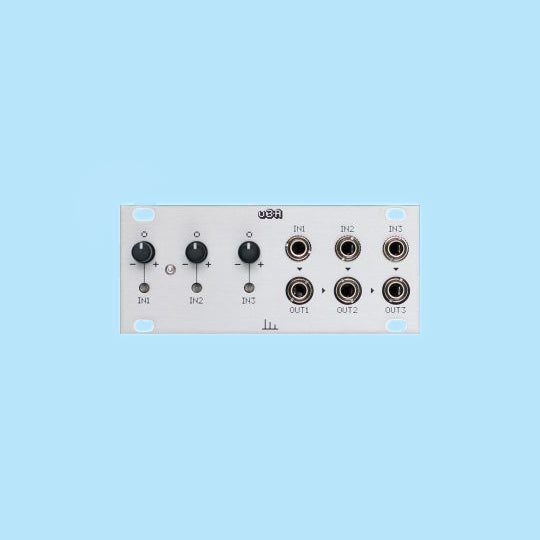

\nThe u3A is a three channel attenuverter Ð useful for scaling, adding offset, inverting or summing signals. Each input is normalled to +5V, so with nothing plugged into the input jacks, each knob will control a voltage range from -5V to +5V. Each output is also summed to the adjacent channel on the right when no cable is connected. \n \nu3A Build Document ÐÊAssembly Guide \n \nThe pcb has presoldered smd components \n \nTechnical specifications: \n

\n
• Intellijel 1U size
\n
• Width: 18HP
\n
• Depth: 30mm
\n
• Consumption: 30mA +12V; 30mA -12V.
\n

\nu3A onÊModular Grid.
