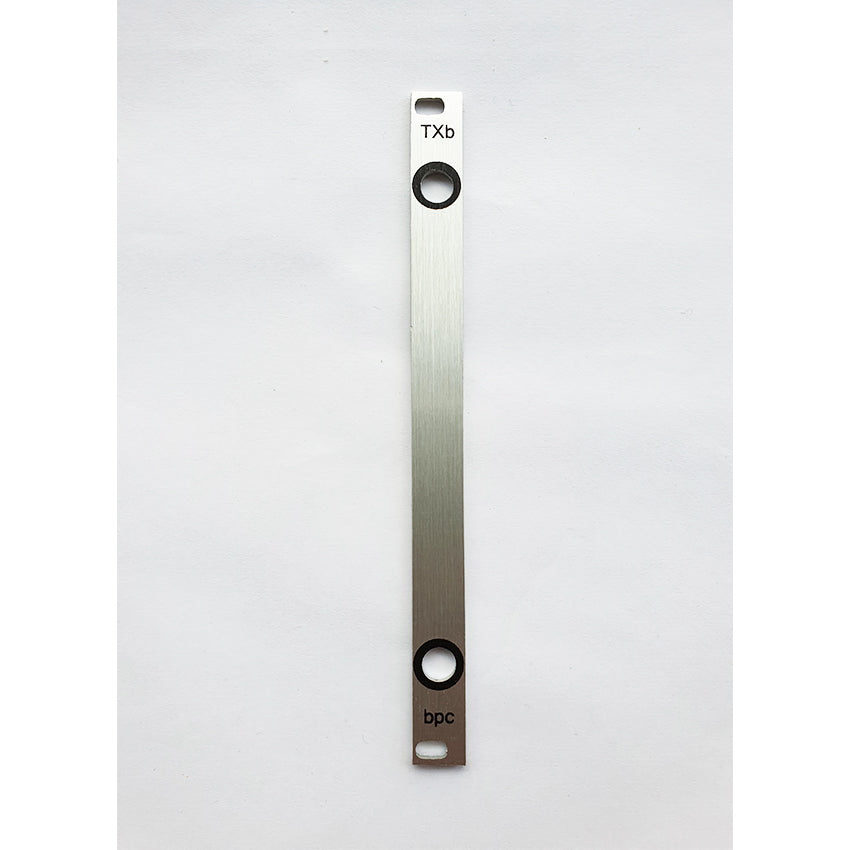

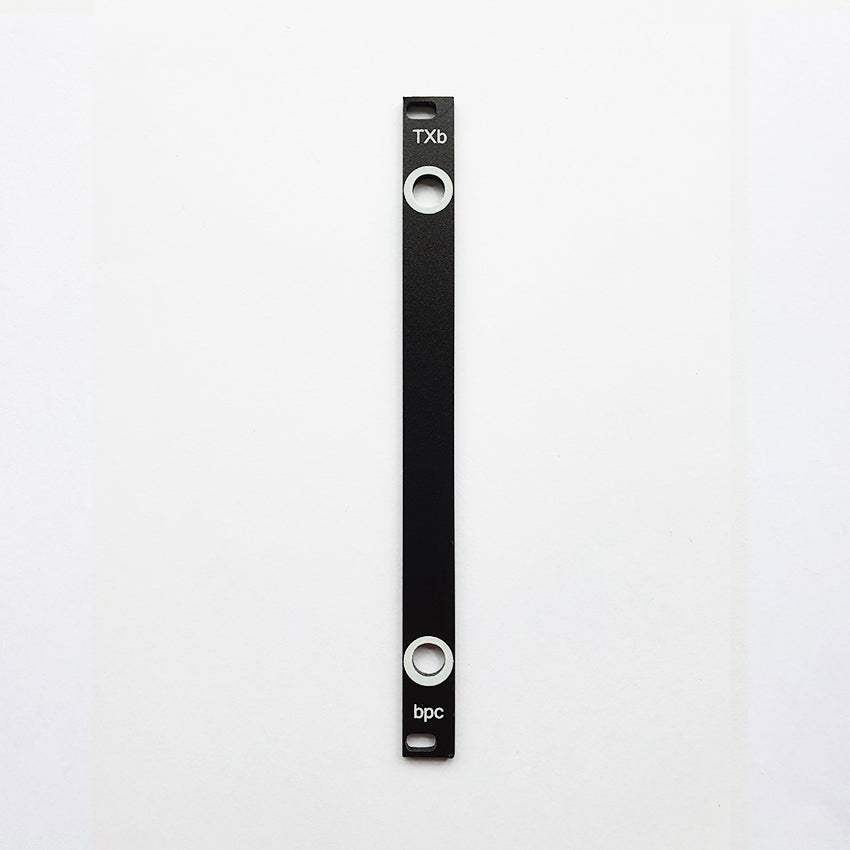

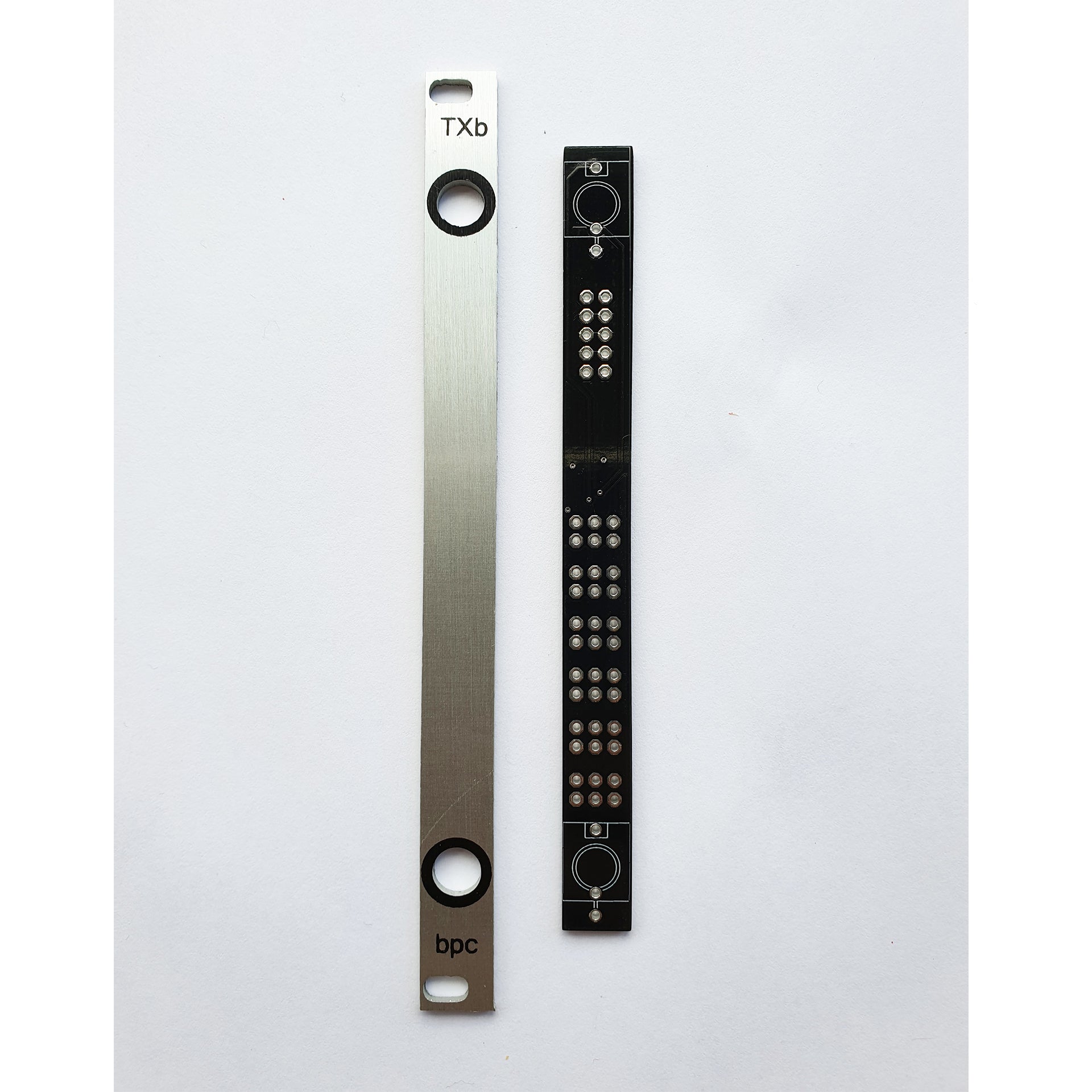

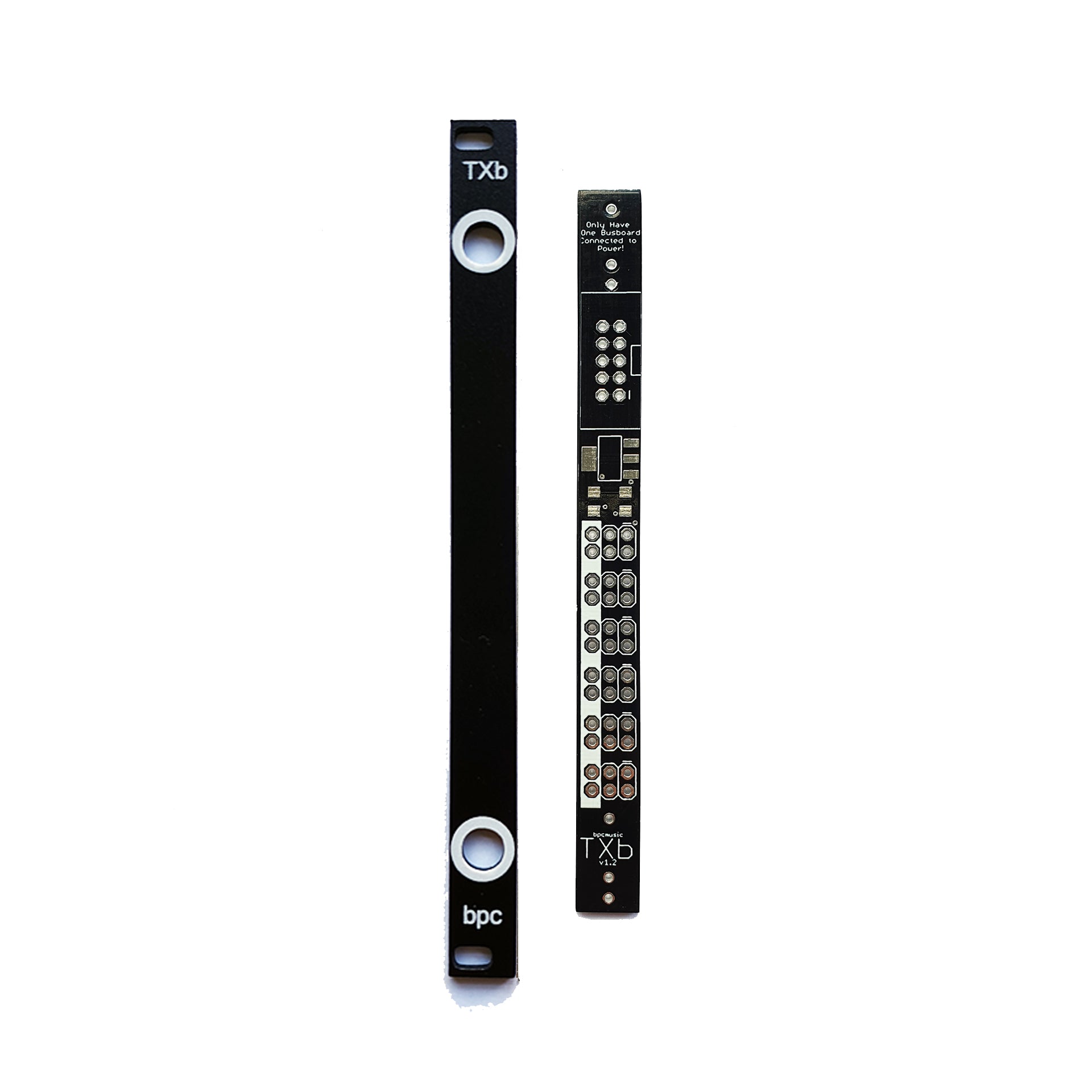

TXb

There are some key things to keep in mind with the TXb (and i2c busses in general): \n

\n
•  Powered bus boards are required when you connect three or more devices to your Teletype via i2c.
\n
• You should only have one bus board connected to power at a time.
\n
• Connections should be kept as short as possible using high-quality cabling (less than 3.5mm).
\n
• There still are practical limits to having a stable i2c bus that are highly dependent on the topology of your deployment. Plan for some trial and error.
\n

\nSpecifications \n

\n
• +12V: 1 mA
\n
• -12V: 0 mA
\n
• +5V: 0 mA
\n
• 2HP
\n
• 20.5mm Depth
\n

\nVisit the TXb on Modular Grid \n \nThe TXb is based off of monome's "tt-busboard" open source project. You can find it on GitHub. \n
