TWO SIDES

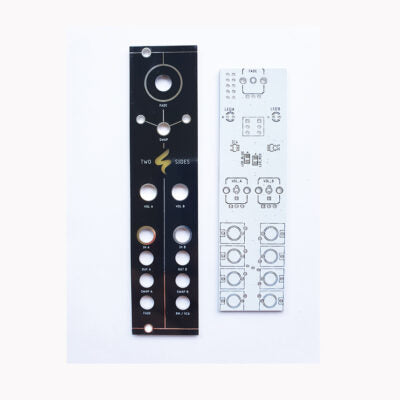

Two Sides is way more than a usual multiple. It has the following functions:1 to 5 Buffered Multiple
Individual Attennuation for each side. Uni- or Bipolar selectable for each side via Jumper.
2-Channel Mixer
Signal On/OFF Switch
Fade two Sources (CV or Audio)
Swap Destinations
Ringmodulate them or
Control the Amplitute of Input A with a CV Signal in Input B (VCA)

You may also use any combination of the above mentioned functions.

The two LEDs indicate the current signal of each side. Even the Logo is illuminated according to the processed signals.

Details:
• Utility Module combining more than 8 Functions
• Mix, Multiply, Attenuate, Control, Route, Fade, Switch or Swap any Signal (CV or Audio)
• LED Indicators
• Seperate single Outs for each Channel
• Wrong polarity protection
• 3U Eurorack module, 6 HP wide
• Power consumption: 35 mA at +12 V and 15 mA at -12V

• 35 mA +12V
• 15 mA -12V
• 0 mA 5V
• 28 mm deep
