SVCA
SVCA
Couldn't load pickup availability

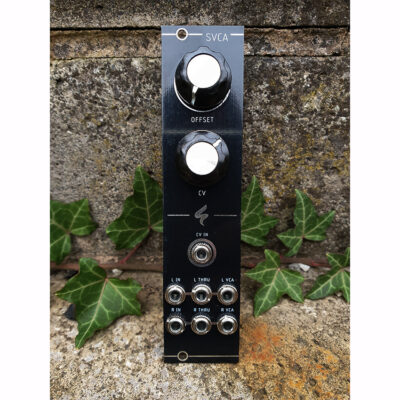

stereo vca with stereo audio thru / 6 HP
SVCA is a High Performance Stereo Voltage Controlled Amplifier with plenty of gain to boost signals. It is great to split your stereo signal for further audio processing and simultaniously change the amplification via CV to create complex harmonics from a single stereo source.
When you connect an audio source to the L IN and R IN jacks, it will be immediately sent to the THRU jacks, allowing you to apply further stereo processing to your original signal.
Simultaneously, the signal is directed to the Stereo VCA. Within this section, you have the ability to manually adjust or modulate the audio's volume using the CV jack.
Rotating the CV Potentiometer will reduce the strength of the incoming CV signal. By using the Offset Potentiometer, you can establish the point at which the amplifier begins to influence the signal's level.
key features
-
Stereo Voltage Controlled Amplifier
-
Offset Control
-
CV Attenuator
-
Original signal is routed to THRU out L & R (buffered)
-
Wrong polarity protection
-
Skiff friendly
specs & downloads
-
width: 6 HP
-
depth: 30 mm
-
power: 50 mA @ +12V / 22 mA @ -12V
