POW! v2

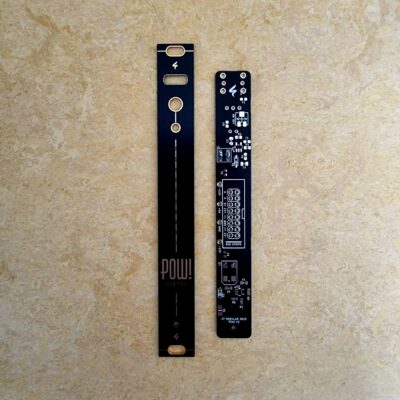

POW! is a 3HP USB Power Supply Unit for Eurorack.

With this compact module, you can power your Eurorack modules from any +5V USB source.

Simply connect a USB-C cable to the onboard jack. The module provides up to 300 mA at +12 V and 150 mA at −12 V via the 2×5 header on the underside of the PCB. Use a standard Eurorack power cable with 2×5 female connectors on both ends.

A built-in switch lets you turn the power on and off. The status LED shows when the unit is active.

Designed for small setups, this PSU is ideal for one or two modules in compact DIY cases.

key features

• USB PSU for Eurorack

• 300mA +12V

• 150mA -12V

• 500mA +5V from USB

• On/OFF Switch

• LED indication

• Skiff friendly

specs & downloads

• width: 3 HP

• depth: 25 mm

• power: +5V USB-C Power

Build docs
