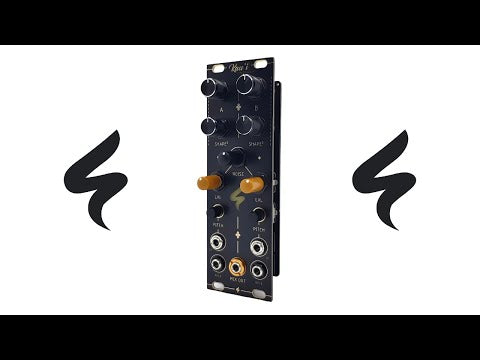

KAUI / dual techno oscillator / 8 HP

KAU'I is a basic two oscillator sound generator that was designed to create Techno basses and leads.

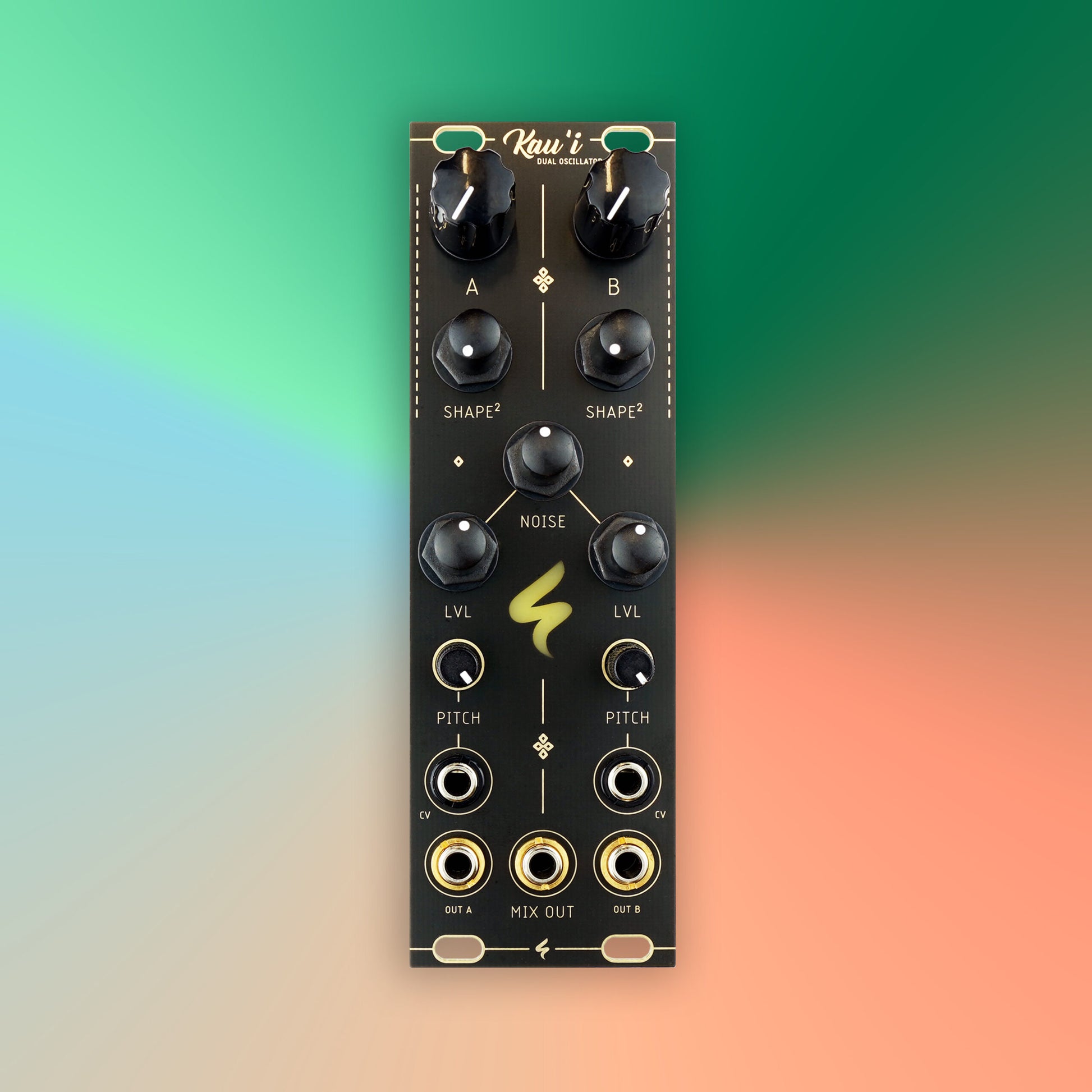

Oscillators A and B share identical designs but cover distinct pitch ranges. Using the A and B knobs located atop the module, you can seamlessly transition the waveform of each oscillator from a square-wave to a triangle wave. The SHAPE2 knobs then take this waveform and blend it with an independent sine-wave signal for each oscillator.

The LVL knobs adjust the volume of each sound generator, while rotating the NOISE knob introduces white noise to oscillator A on the MIX output.

Both oscillators feature a pitch control input accompanied by an attenuator.

This input follows a linear voltage-to-frequency response (Hz/Oct), making it ideal for generating unique Techno sequences at lower frequencies.

At the module's base, you'll discover a MIX OUT combining the outputs of both oscillators, alongside individual outputs for each oscillator.

key features

• Dual Analog Oscillator

• Manual Wave-shape Controls

• Independent Level Control

• Mix Output

• Noise Generator

• Wrong Polarity Protection

specs & downloads

• width: 8 HP

• depth: 28 mm

• power: 55 mA @ +12V / 29 mA @ -12V

Build docs
