ST MODULAR

EUPHORIA

EUPHORIA

£119.99 GBP
£119.99 GBP
Sale Sold out
Options

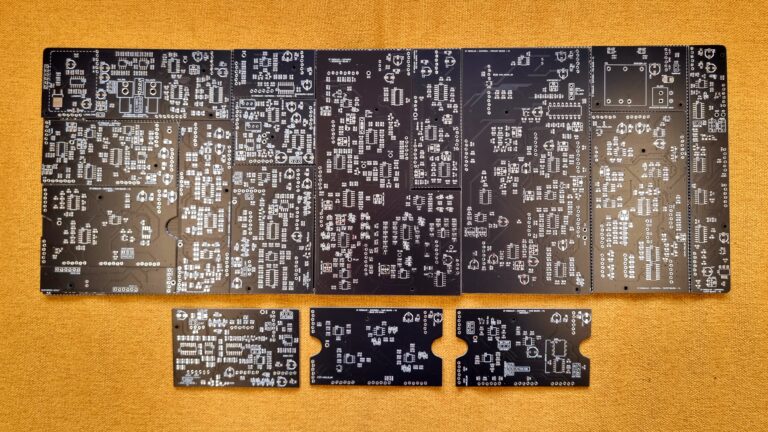

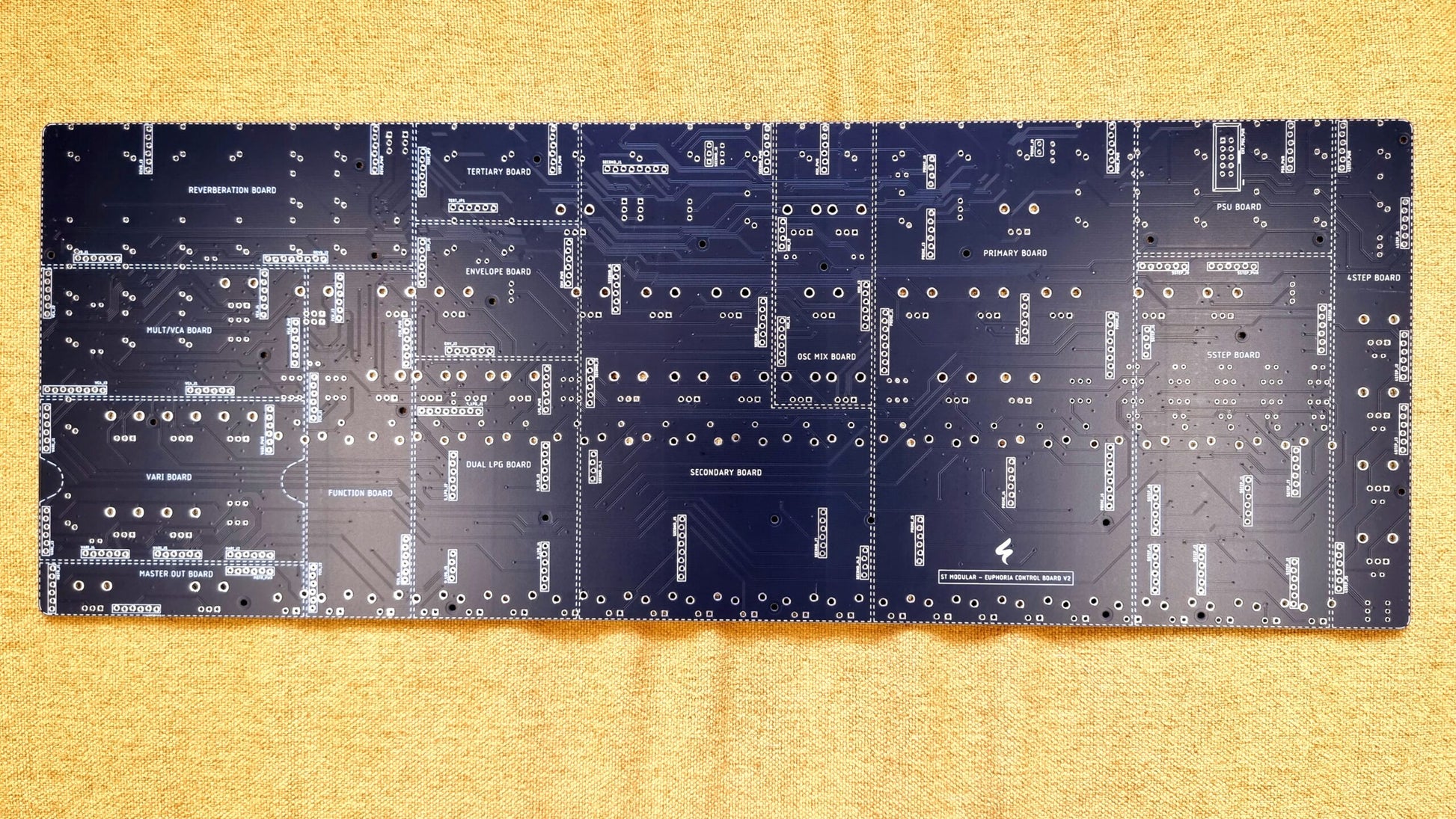

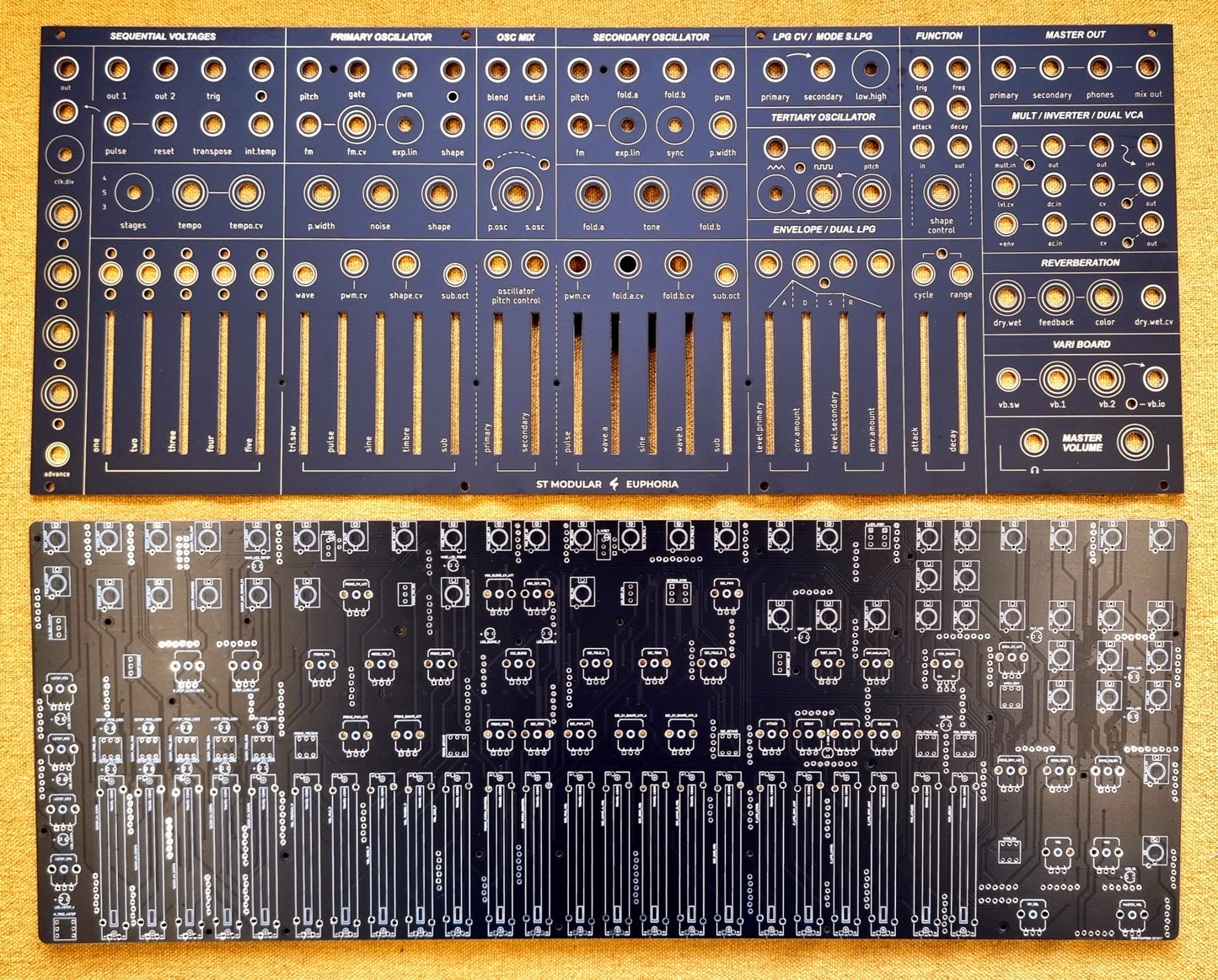

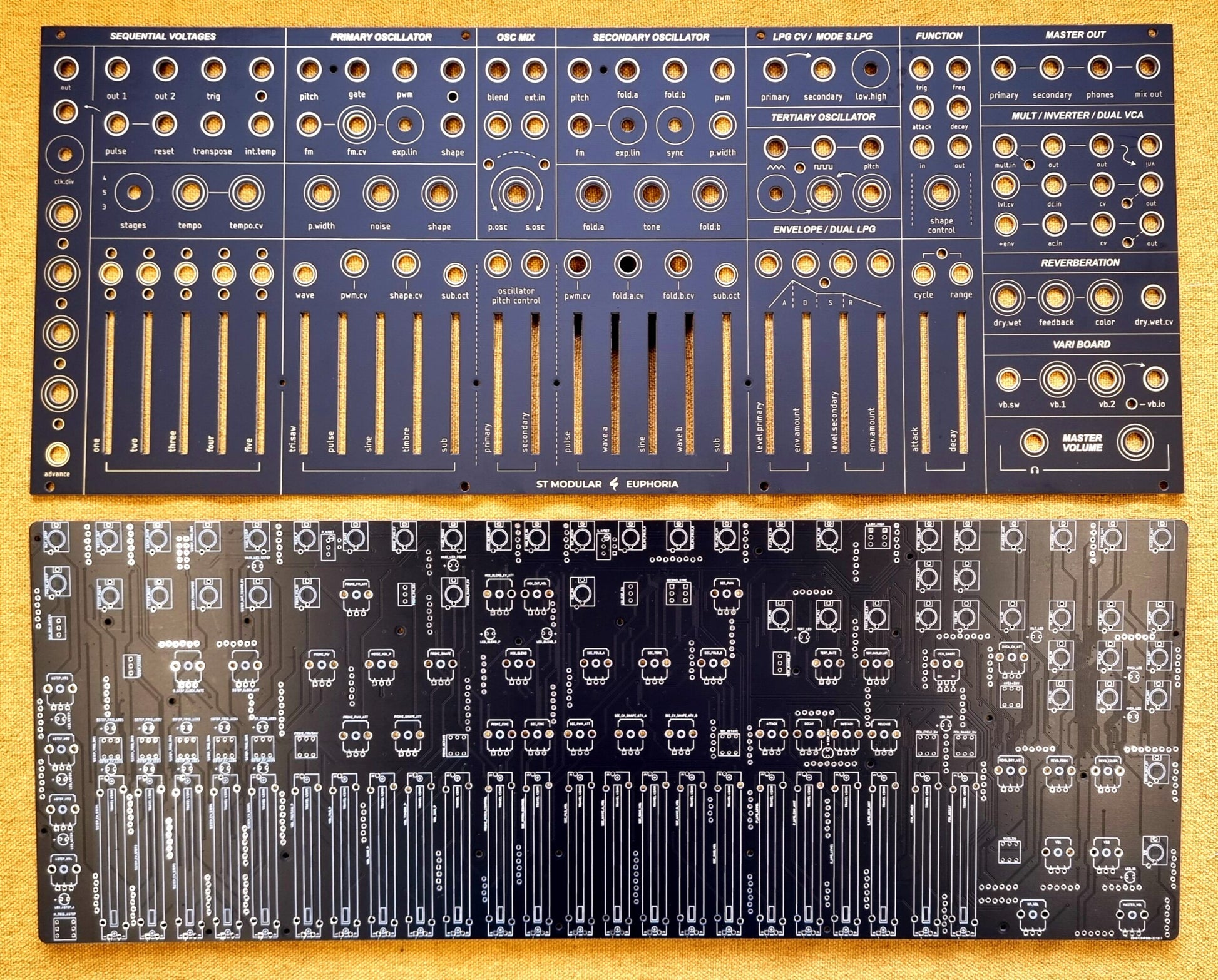

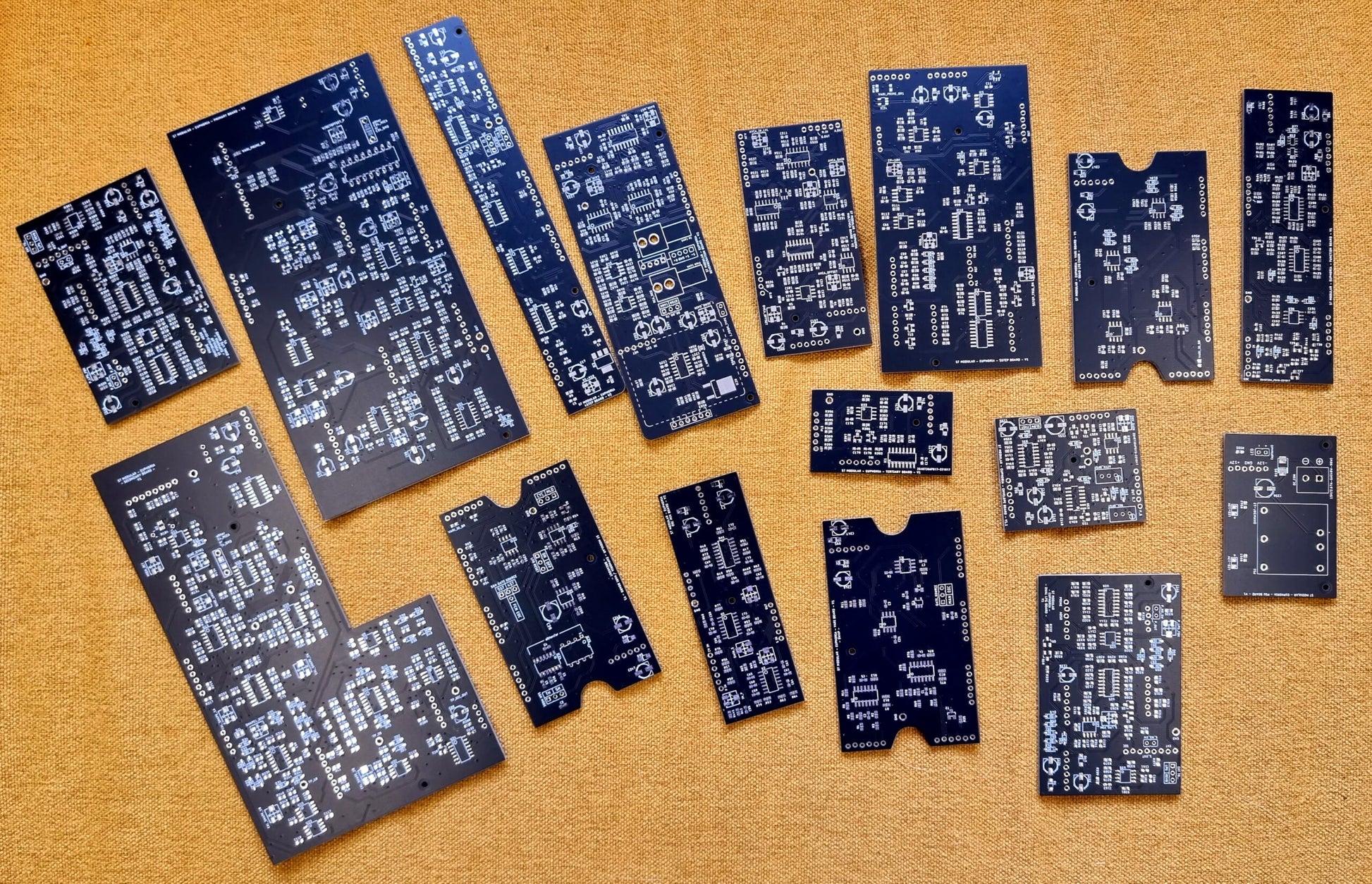

The full kit with SMD pre-soldered includes everything you need to build a working synth. (but does not include a case, spring reverb/reverb brick or psu/socket/power switch)

Sockets for the spring tank are included.

The kit will run off euro power as is, if you are making your own case you’ll need to supply the appropriate power connection extras.

The build is pretty straight forward but there is a fair amount of calibration involved, the manual has very cear instructions for calibrating and using the synth.

MAIN FEATURES

TWO ANALOG OSCILLATORS

Two Voltage Controlled Oscillators with classic waveforms, waveshapers, sub-octaves and a noise source. Convenient sliding potentiometers for volume control of the waveforms. Based on the famous CEM3340 chip and a newly developed wave-shaping tone generator.

TWO SEQUENCERS

Play notes with a 5-STEP trigger and CV sequencer and an additional 4-STEP CV sequencer. Transpose and change the length of a sequence, control the tempo via CV, add swing or sequence manually with the push of a button.

OSC MIX & VARI BOARDS

Seamlessly blend the oscillators manually or by CV. Insert external audio and pass it through the Filter or internal Reverb. VARI BOARDS are interchangeable boards, each offering a different functionality. Choose the VARI BOARD that meets your requirements.

DUAL LPG, VCA & ADSR

Each oscillator is processed by a filter-based low-pass gate (LPG) and both are optionally routed through an internal AC-coupled VCA. Use the internal ADSR envelope to shape and express your sounds.

MODULATION  & TOOLS

Get your sounds moving with the internal CV-controllable LFO and the Buchla 281e-inspired function generator. Multiply, invert and amplify your signals with a buffered multiple and an additional DC-coupled VCA.

REVERBERATION

Add depth to your analog sounds with the internal reverb unit. Connect either an Analog Spring Tank or a Digital Reverb Brick. Apply Reverb Feedback and control the Dry/Wet Portion via CV.
