DRUM (Digital Drum Module)

DRUM (Digital Drum Module)

£14.99 GBP
£14.99 GBP
Sale Sold out
Options
built module 808 drum

DRUM is an excerpt of the Mutable Instruments PEAKS module. It was reduced to the max and only focuses on the 808 and FM Drum algorithms.



There are two modes to be selected via a push button on the PCB:


808 DrumThis is an emulation of the well-known 808 kick drum. You have manual control over the FREQUENCY, PITCH ENVELOPE, TRANSIENT and DECAY.

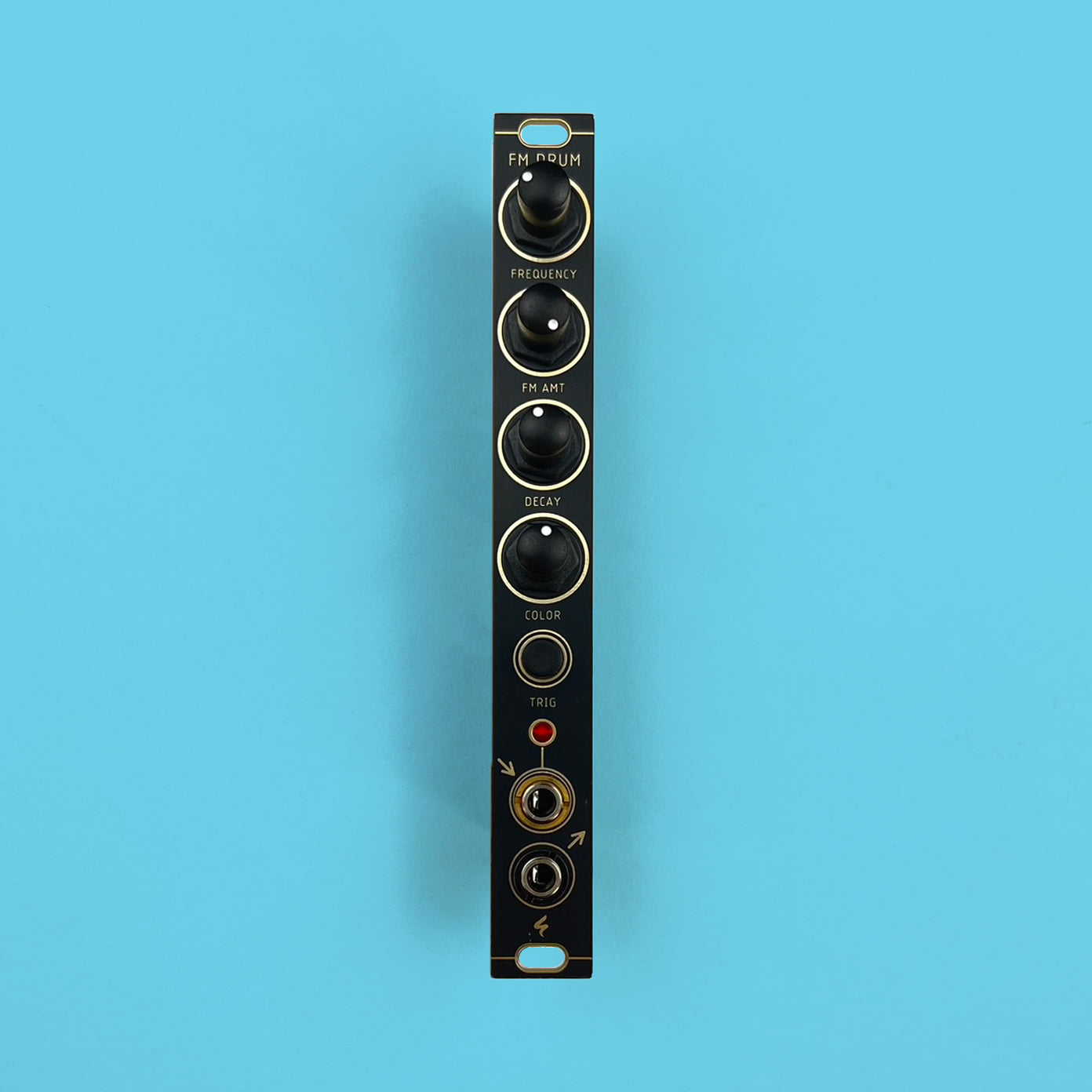

FM DrumThis is a digital drum synth based on FM synthesis. By turning the knobs you can change the FREQUENCY, FM AMOUNT, DECAY and COLOR of the drum sound.


DRUM has an internal EQ that allows you to adjust the amount of bass applied to the signal using a trimmer on the PCB. This module also has a flip panel with descriptions per mode on each side.


Both modes share a manual TRIG button to execute the drum sound, a TRIGGER INPUT and a signal OUTPUT.


Released under cc-by-sa-3.0 license:



key features

  • Digital Drum Module

  • Two Modes: 808 & FM

  • Manual and CV Trigger

  • HP friendly

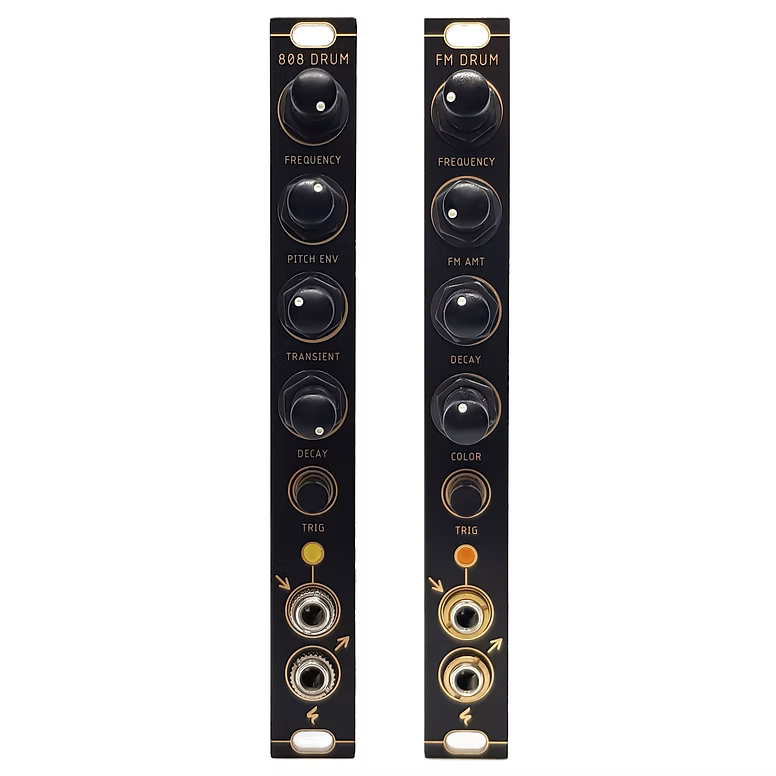

  • Flip Panel with Descriptions for each Mode

  • Based on the MI Peaks Algorithms

  • Wrong Polarity Protection


specs & downloads

  • width: 3 HP

  • depth: 65 mm

  • power: 60 mA @ +12V / 2 mA @ -12V



Build docs
