CV BENCH 0HP

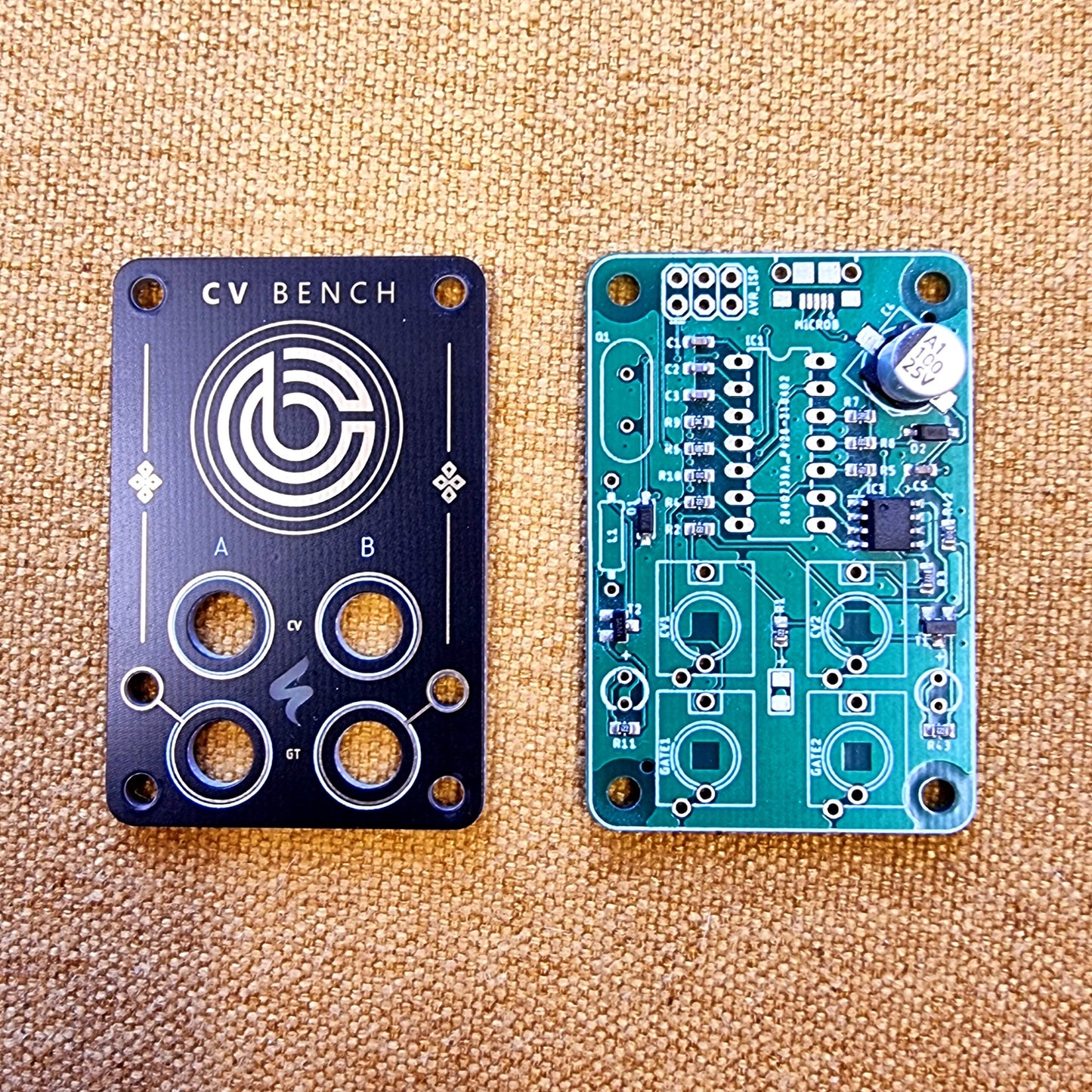

On the pre-soldered pcb all the smd components are pre-soldered, the usb connector is NOT pre-soldered

ST Modular website

CV Pal programming instructions & firmware

CV Bench is a small and handy version of Mutable Instruments CV Pal, a USB MIDI to CV Interface. It enables you to control your modular from a computer or a tablet. Simply connect CV Bench with a micro USB cable to your USB host device and you are ready to send Gates and CV to your modules.
No further driver installation is required, you can directly select CV Pal as your midi port in your DAW’s midi settings.
Unlike the original, this version has shrunk to a tiny desktop tool that can sit directly in front of your modular. You don’t have to give up any of your precious HP. It also features two GATE LEDs that indicate when a gate signal is present at the gate jacks.
CV Bench is powered by the USB cable.

CV Bench works with the same firmware as the original CV PAL. Since it uses an unusual USB setting, you may experience message delays on systems running Windows. Please see the video below where I used CV BENCH to control my modular from Ableton on a Windows 10 computer and decide for yourself if you feel and jitters or delays

Released under cc-by-sa-3.0 licence

Original design by E.Gillet
