QUARKS

\n

Github

\n

22hp version of MI Elements by Jak Plugg Open Source

\nQuarks is a full-blown synthesis voice based on modal synthesis Ð an under-appreciated flavour of physical modelling synthesis with a strange and abstract feel. \n \nQuarks combines an exciter synthesis section generating raw, noisy sounds characteristic of bowing (filtered friction noise), blowing (pitch-controlled granular noise), or striking (stick, mallet, hammer or brush sample playbackÉ or bursts of synthetic impulsions). \n \nThese sources, or external audio signals, are processed by a modal filter bank Ð an ensemble of 64 tuned band-pass filters simulating the response of various resonant structures (plates, strings, tubesÉ) with adjustable brightness and damping. A stereo ambience reverberator adds depth and presence to the sound. \n \nAll parameters have a very meaningful and well-delimited impact on the sound. When designing Elements, great care has been taken in selecting parameter ranges and control curves, producing a large palette of sounds Ð often beyond physical realism Ð but always well controlled and stable. The Òdark spotsÓ of noise and feedback are reached gradually, and they do still react to controls. The module is deliberately menu- and switch-free Ð what you dial/patch is what you hear! \n

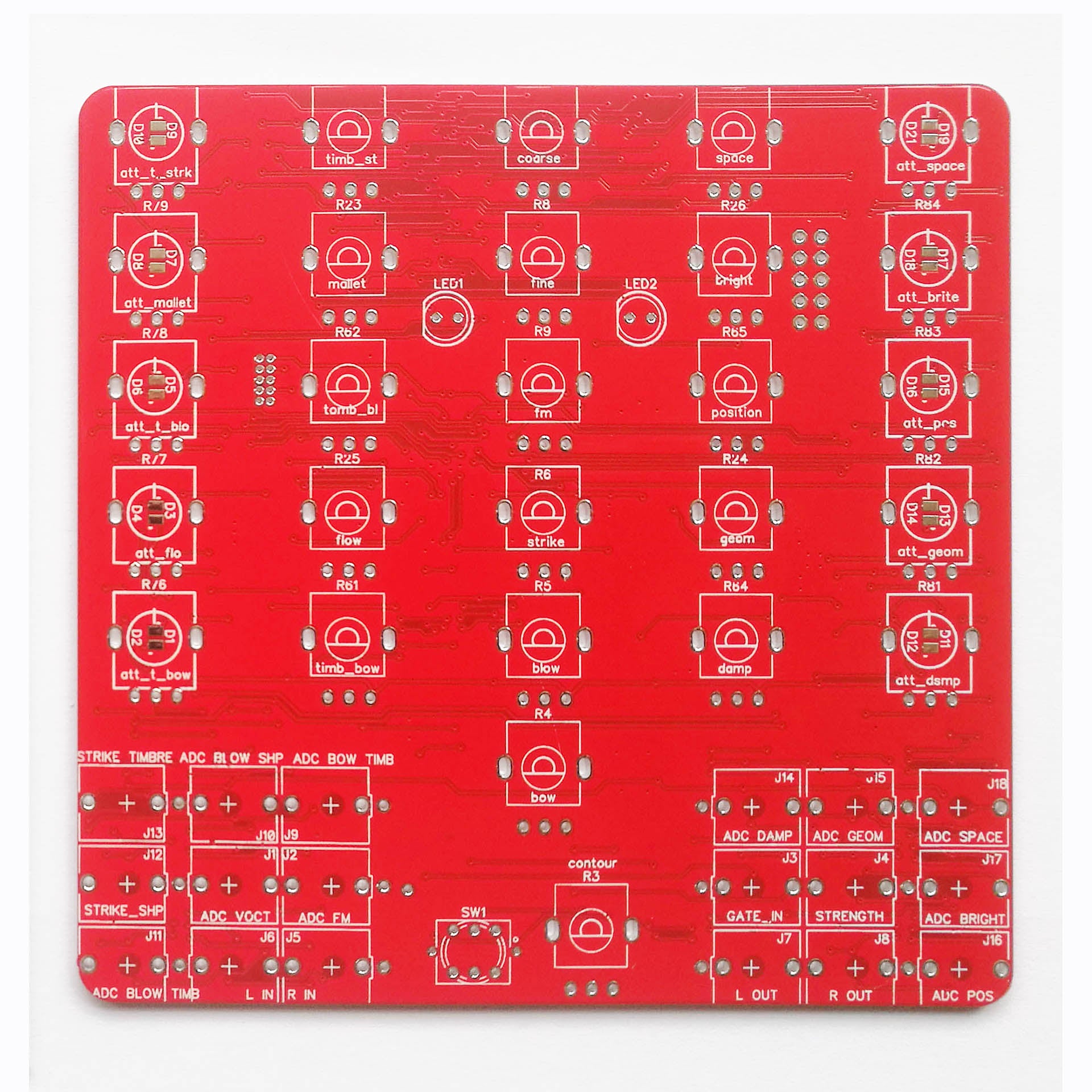

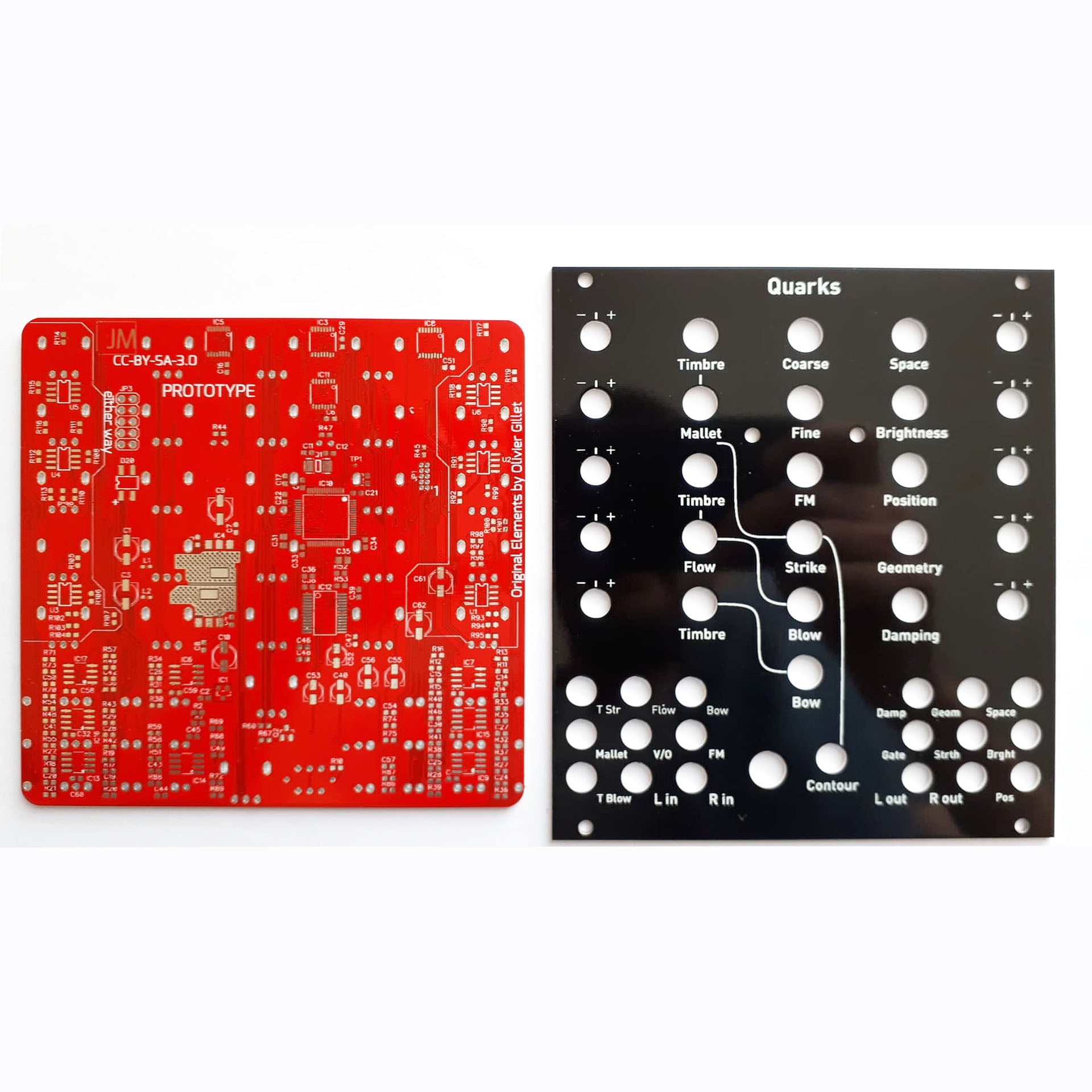

PCB redesign by J. Matheson. it works with the same firmware, added optional LEDs and drivers to indicate input CVs with tranlucent potentiometers

\n

The little dots on the pcb are the cathodes, and on the LEDs above they correspond to the ends with the green on them

\nPreliminaryÊGoogle sheets BOM \n \ncc-by-sa-3.0 \n \nOriginal Design by: Emilie Gillet
