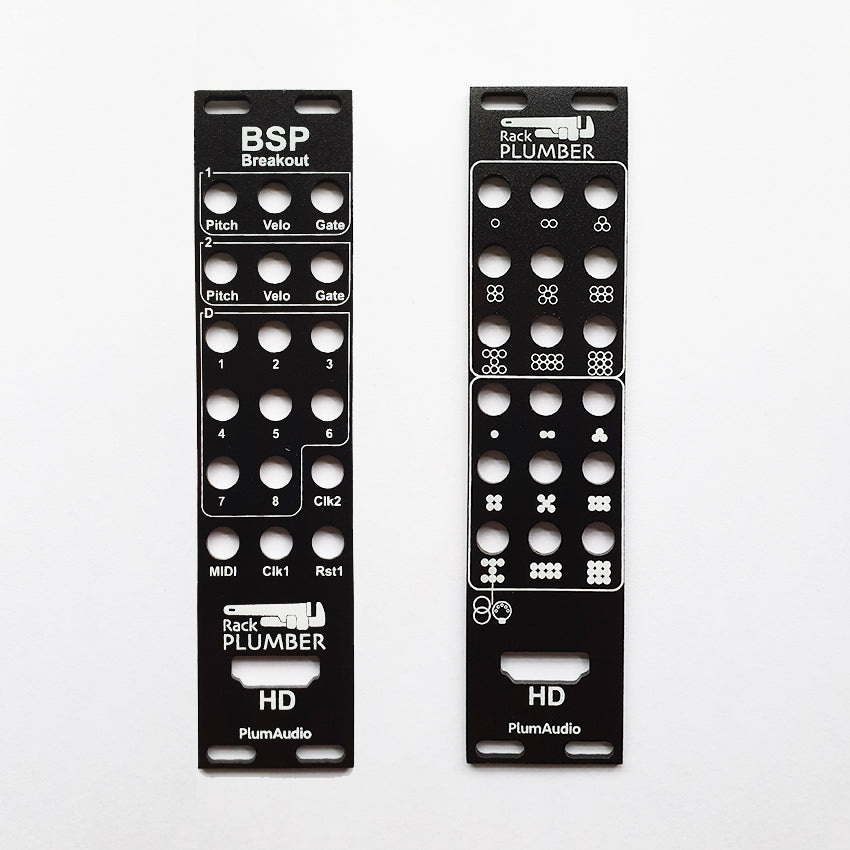

RACK PLUMBER HD/BEAT STEP PRO

Rack Plumber is a module for sharing 18 connections via HDMI for freedom from cable clutter in a big case or between 2 cases.

You will need at least two Rack Plumbers to be able to use the system.

HDMI cable is not included.

You may experience cross-talk if used for audio, therefore we recommend the module is used for CV only.

Please note that the full kit does not have the SMD pre-soldered as it is only 18 resistors and leds to solder.

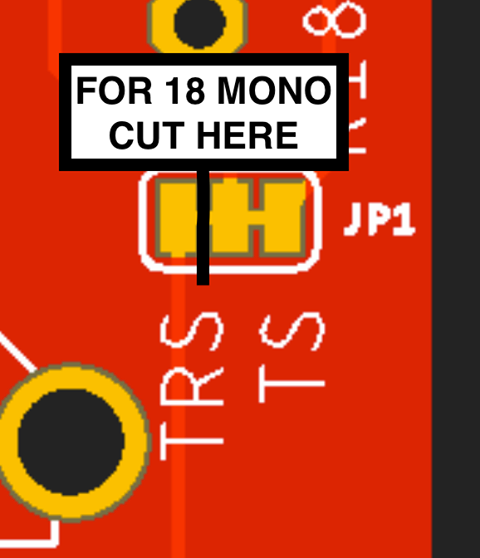

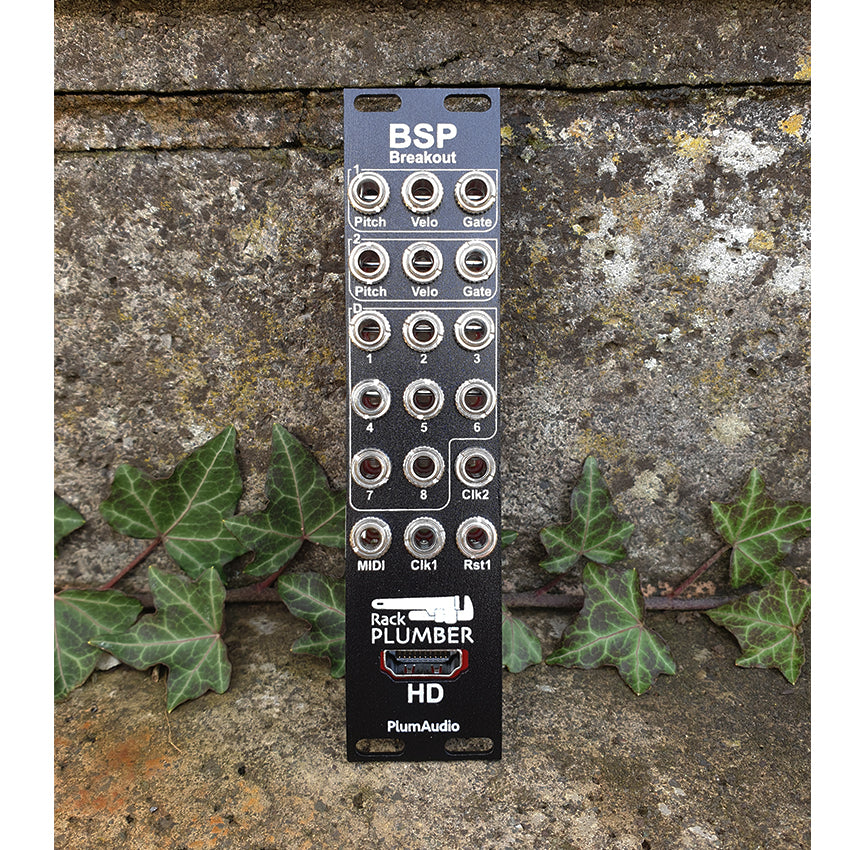

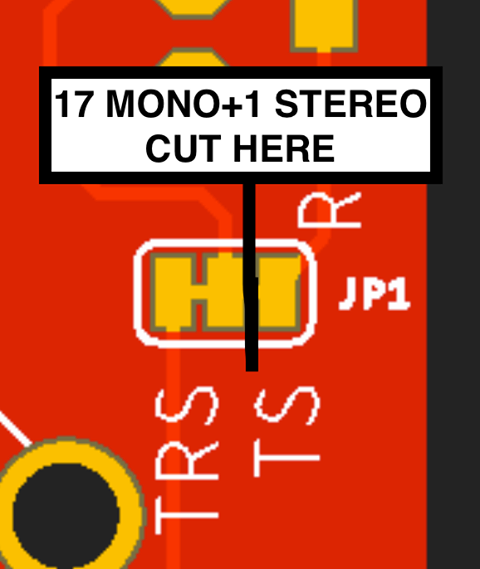

The Beat Step Pro kit and module comes with 17 mono connections and one stereo (for midi).

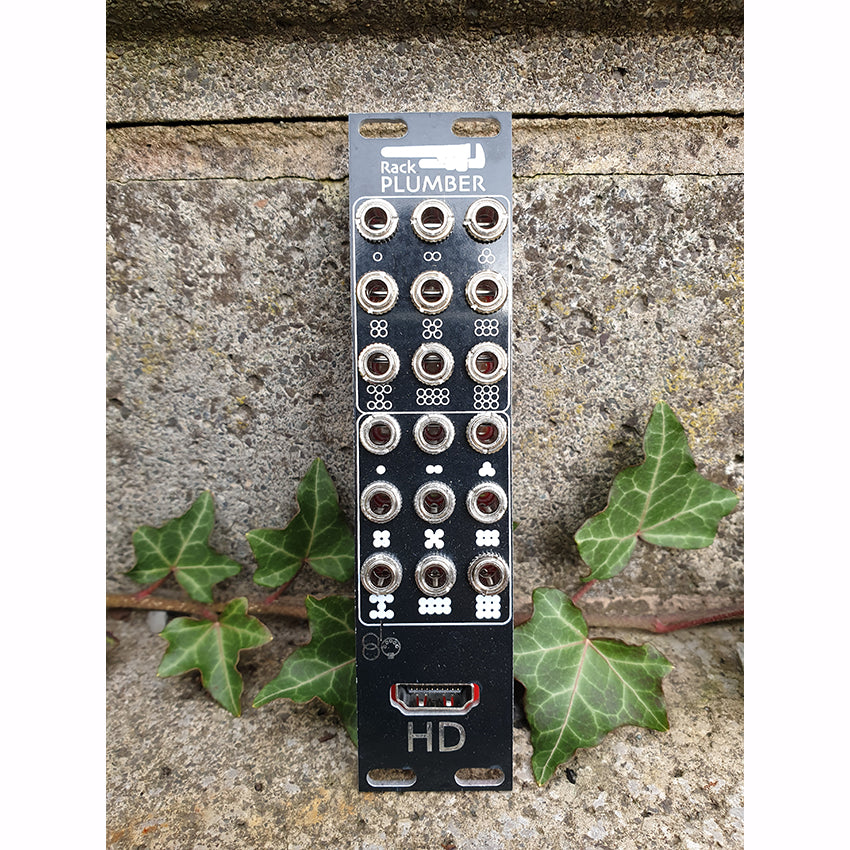

The Rack Plumber HD kit and module comes with 18 mono connections.

Plum Audio Build Help Facebook Group

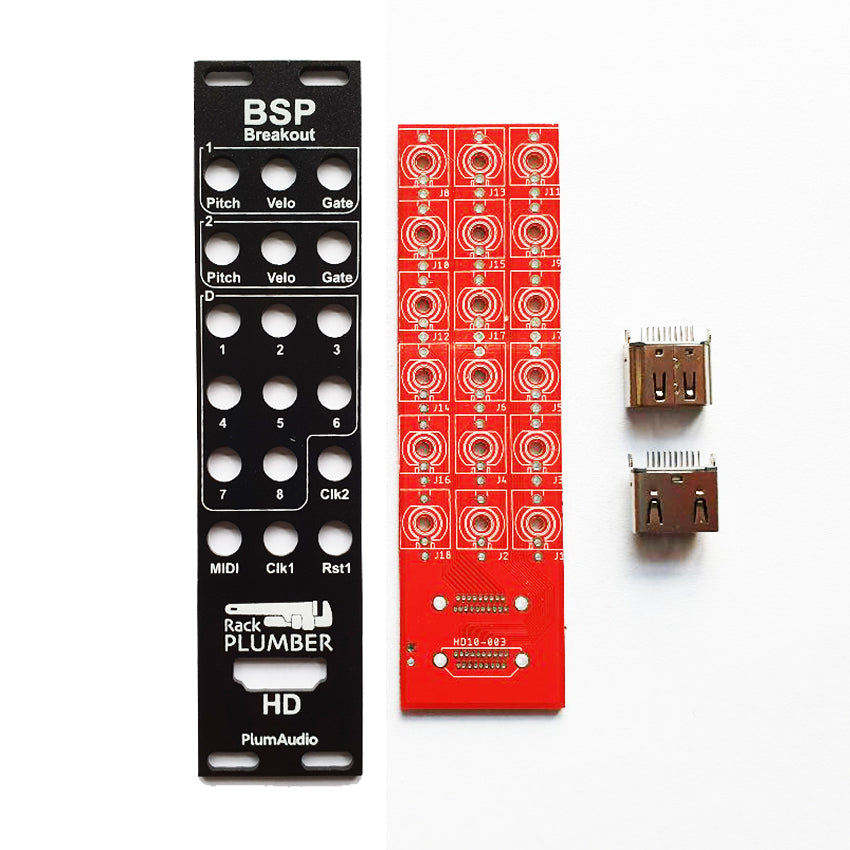

Rack Plumber HD BOM:

18 X Thonkiconn

18 X SMD Leds (1206)

18 X 1.0k-2.5k Resistors (0603) (for leds brightness)

1 X Male pin header 1X3 with jumper (for shielded / non shielded jumper)

1 X Male pin header 1X2 with jumper (for jack leds jumper)

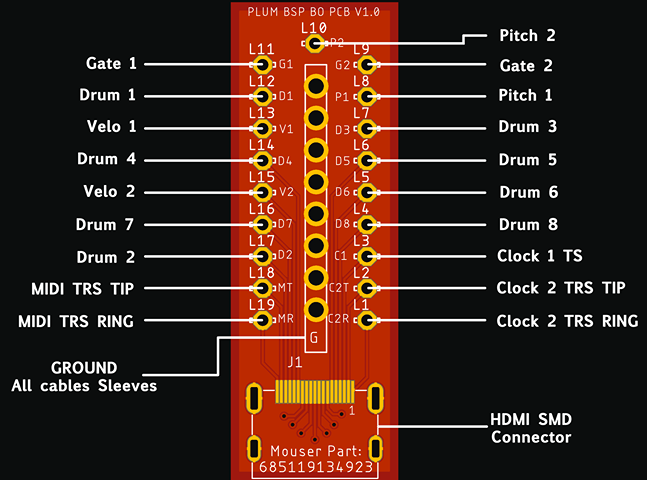

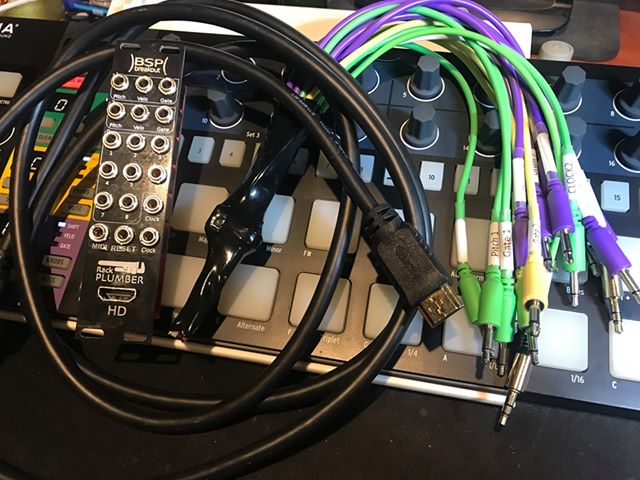

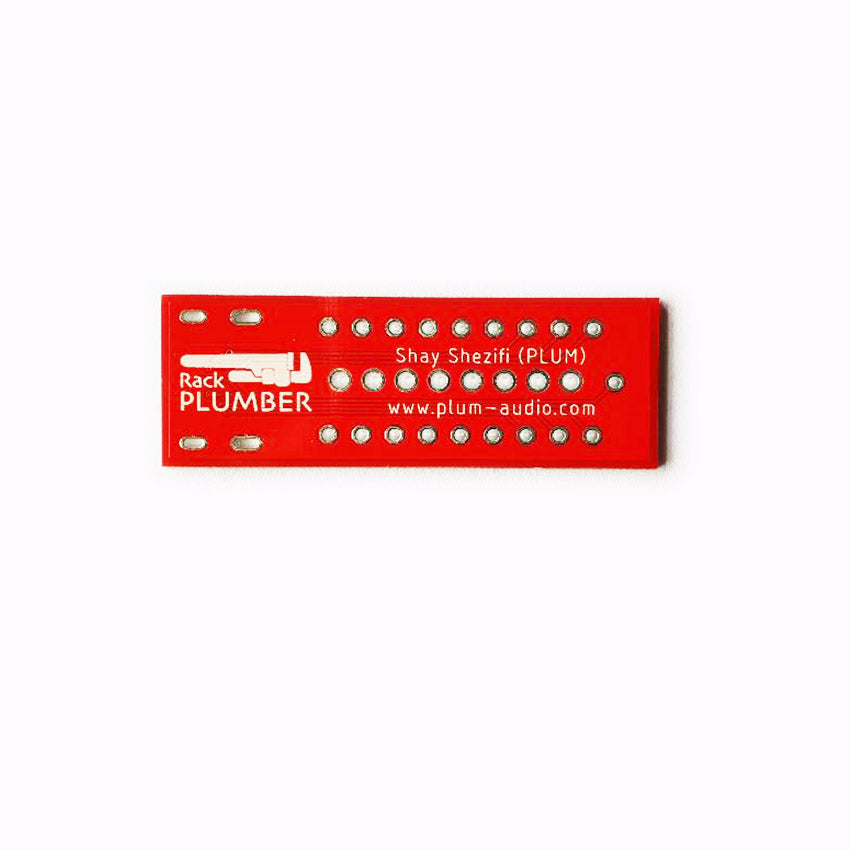

Also available is the breakout pcb to make a cable connector for jack cables between BSP and HDMI.

BSP BO BOM

See video for build instructions for the breakout cable.
