PACHINKO (mini Marbles)

PACHINKO (mini Marbles)

£14.99 GBP
£14.99 GBP
Sale Sold out
Options

PACHINKO

\n

MINI MARBLES

\n

GITHUB

\n
BOM

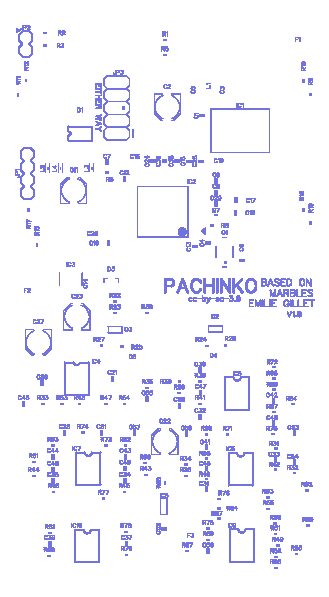

\nPlease see product gallery image if silkscreen is unclear. \n

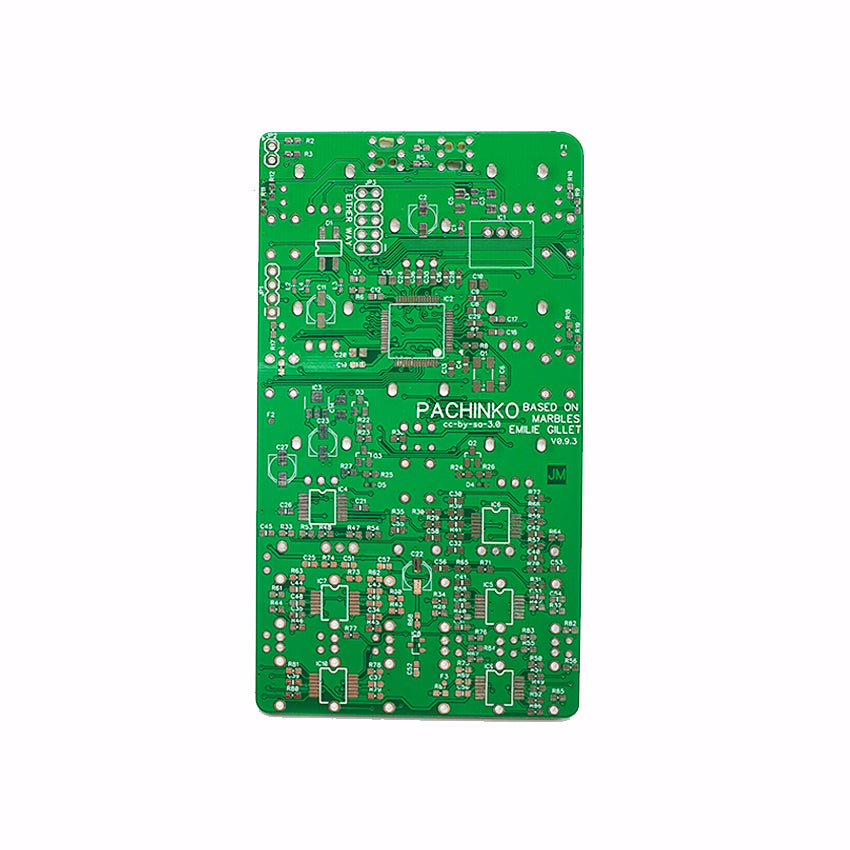

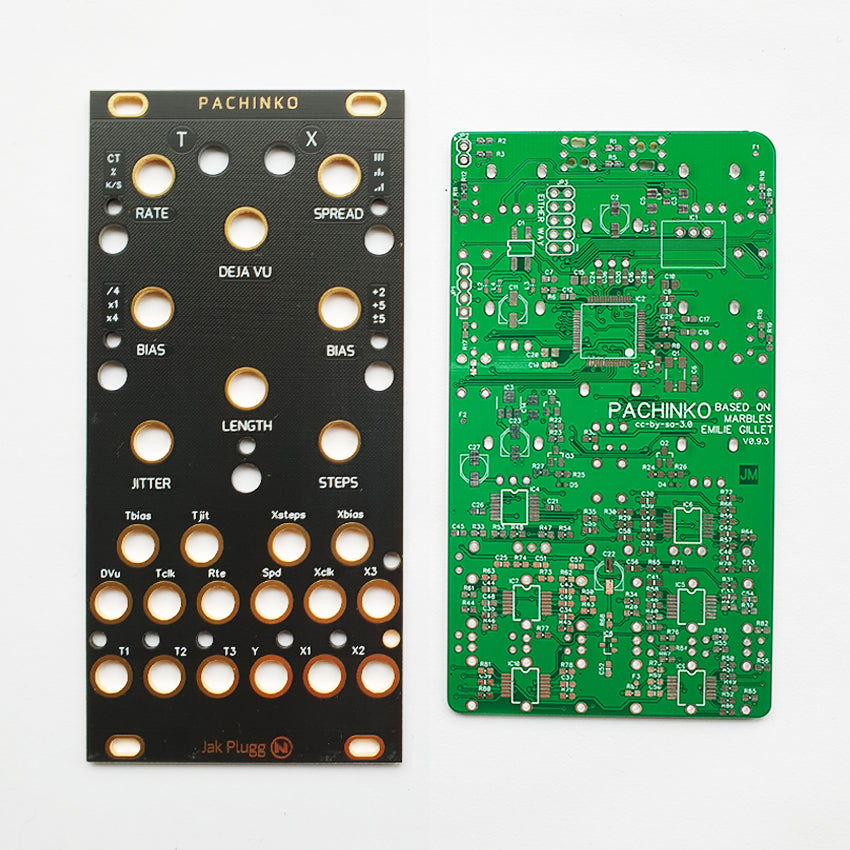

\n \nPACHINKO is a smaller single pcb redesign of the Mutable Instruments Marbles module by Emilie Gillet. \n \nCC-by-SA Emilie Gillet \n \n
\n

TECHNICAL SPECS

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
CURRENT DRAW:
_ +12V:80mA
_ -12V:20mA
_ +5V:0mA
DIMENSIONS:
_ WIDTH:10HP
_ DEPTH:30mm
\n

BUILD DIFFICULTY: VERY HARD

\n
    \n
  • No build guide
    • \n
  • Hard calibration procedure
    • \n
\n

RESOURCES

\n \nOriginal design: \n \nHardware: cc-by-sa-3.0 \n \nBy: E. Gillet
