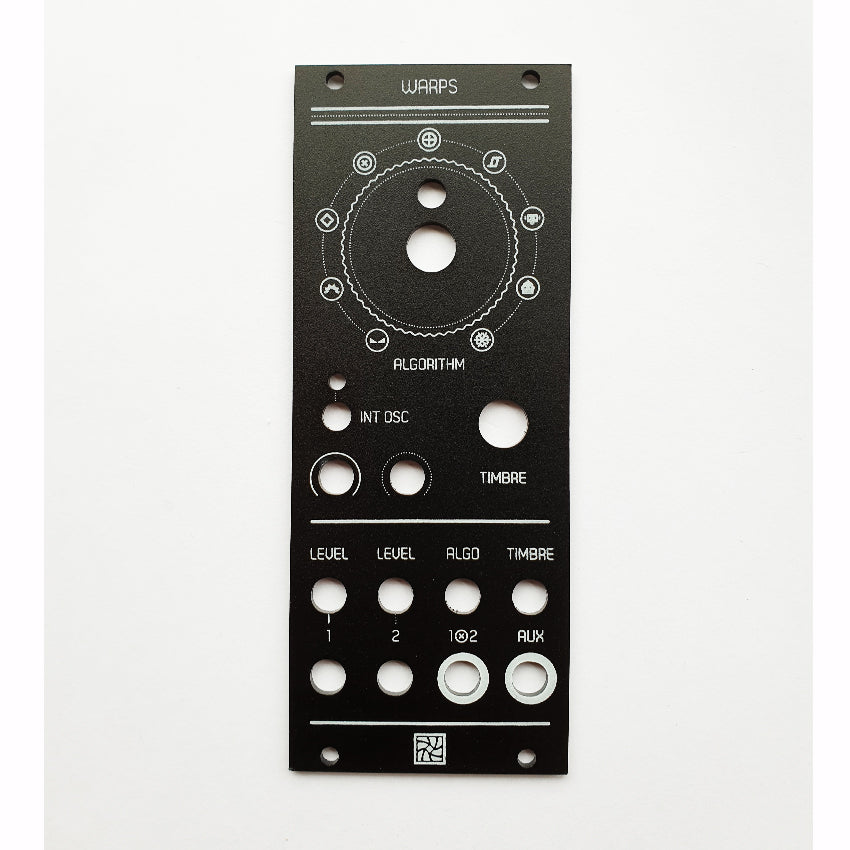

WARPS

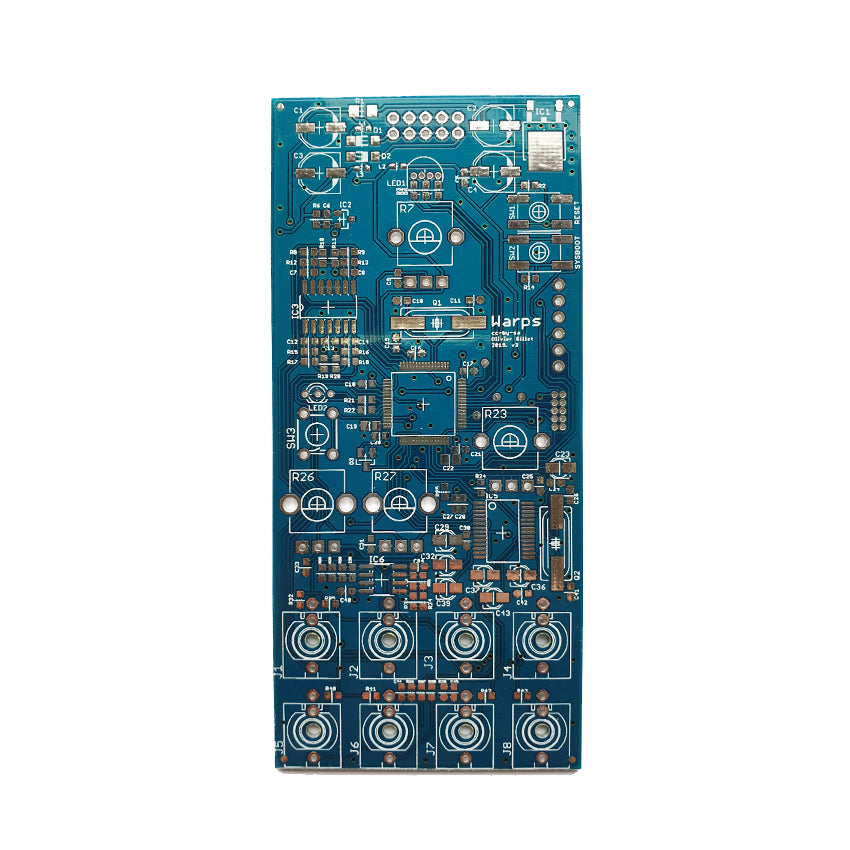

Github - BOM

Features

7 signal hybridization algorithms

• Crossfade.
• Cross-folding.
• Digital model of an analog diode ring-modulator.
• Digital ring-modulation.
• Bitwise XOR modulation.
• Octaver/comparator.
• 20 band-vocoder.

Everything under CV control

• CV control of modulation algorithm selection, with crossfading between adjacent algorithms.
• CV control of each input's amplitude, with emulated analog saturation.
• V/O CV control of the internal oscillator (when enabled).
• For each algorithm, CV control of timbre richness/brightness/distortion.

Built in carrier oscillator

Audio input 1 can be replaced by an internal digital oscillator with through-zero FM.

Available waveforms: sine, triangle, sawtooth, pulse, filtered noise.

Specifications

• Input impedances: 100k.
• Audio inputs and outputs: 16-bit, 96kHz.
• CV inputs: 12-bit, 1.6kHz.
• Internal processing: 32-bit floating point, 576kHz (32kHz for the vocoder).

Code (AVR projects): GPL3.0.

Code (STM32F projects): MIT license.

Hardware: cc-by-sa-3.0

By: Emilie Gillet (emilie.o.gillet@gmail.com)
