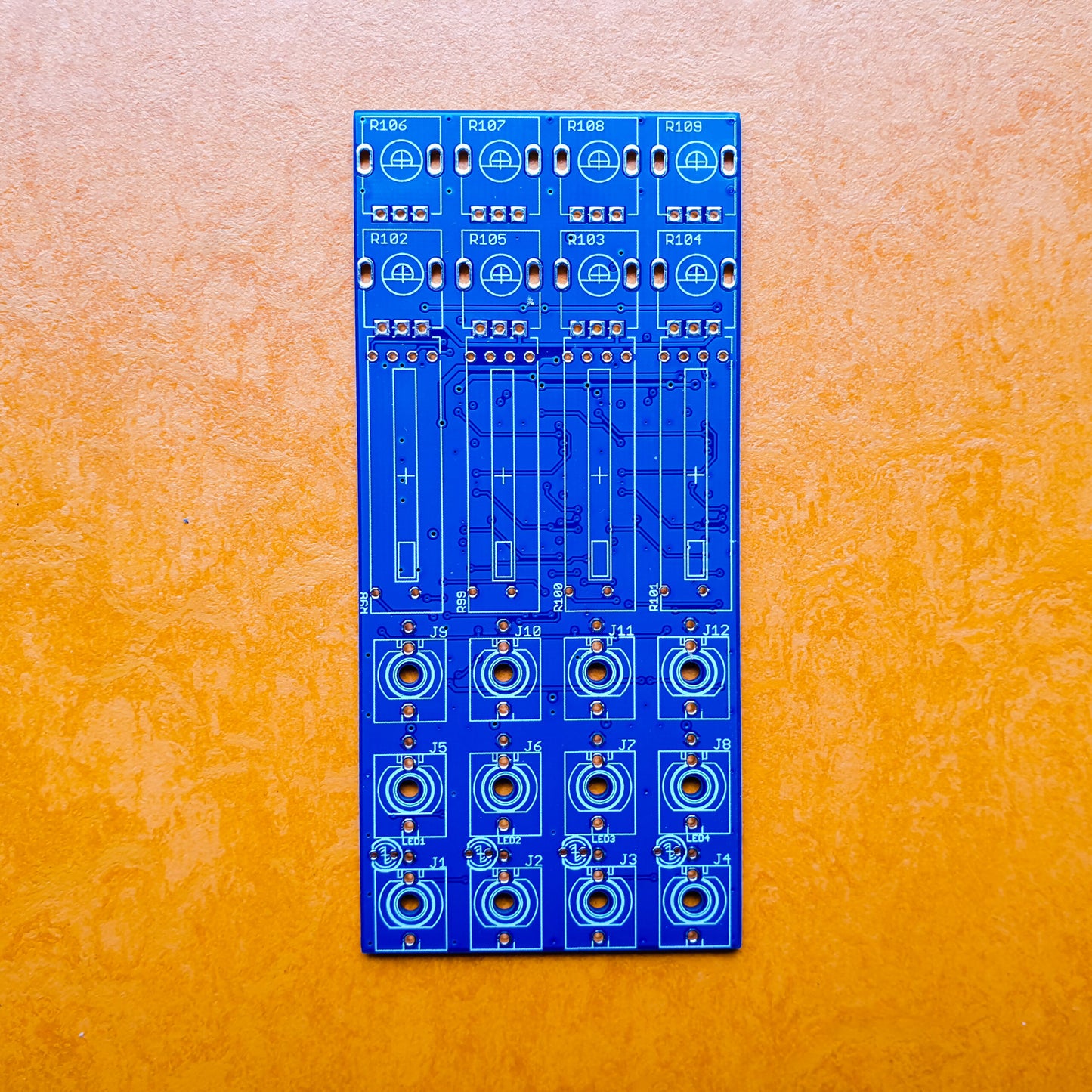

MUTATED

VEILS V2

£8.99 GBP

Sale Sold out

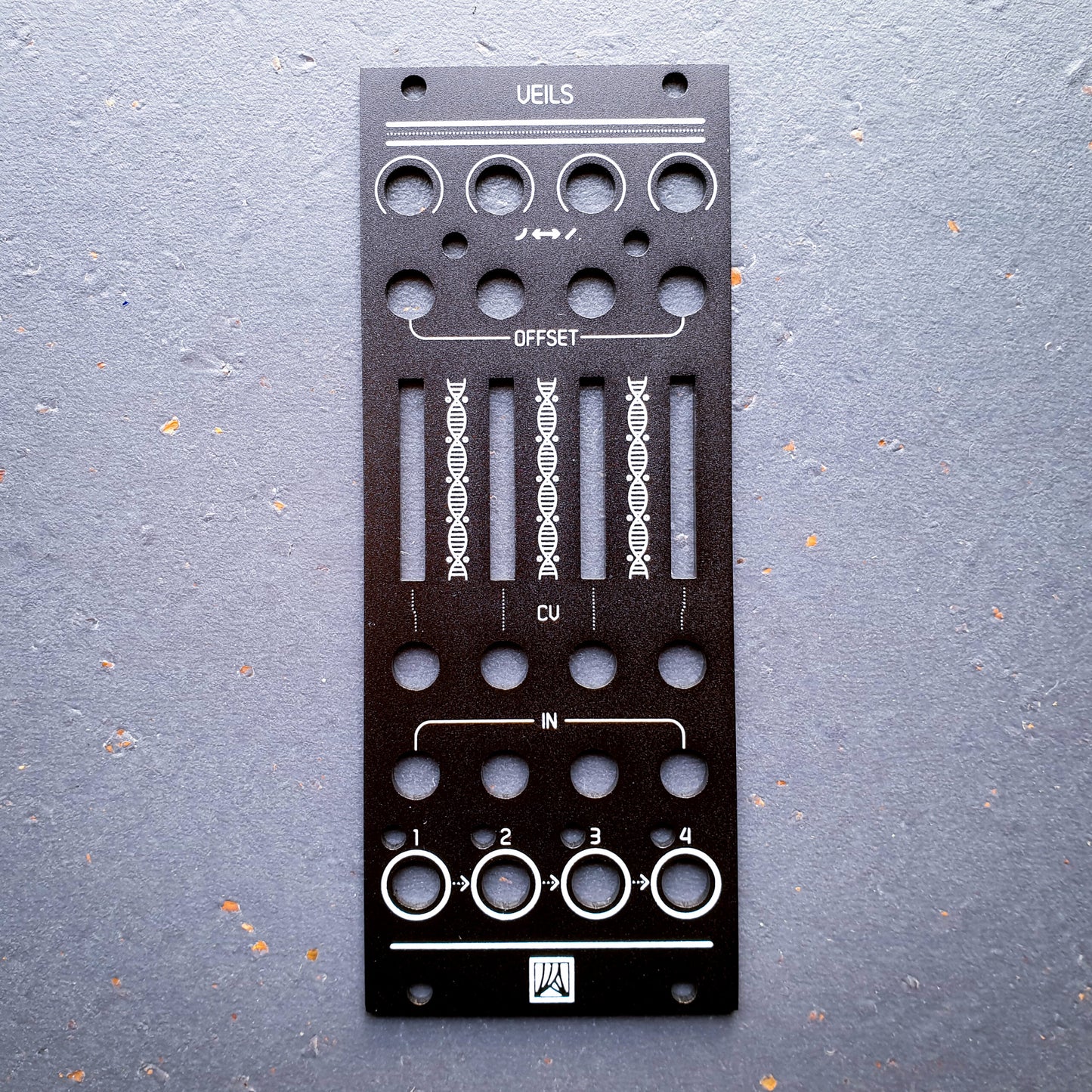

Options pcb only black anodized aluminium panel only

It seems there is an issue with the pcb files from the Github, C22 & C23 are not connected to ground.

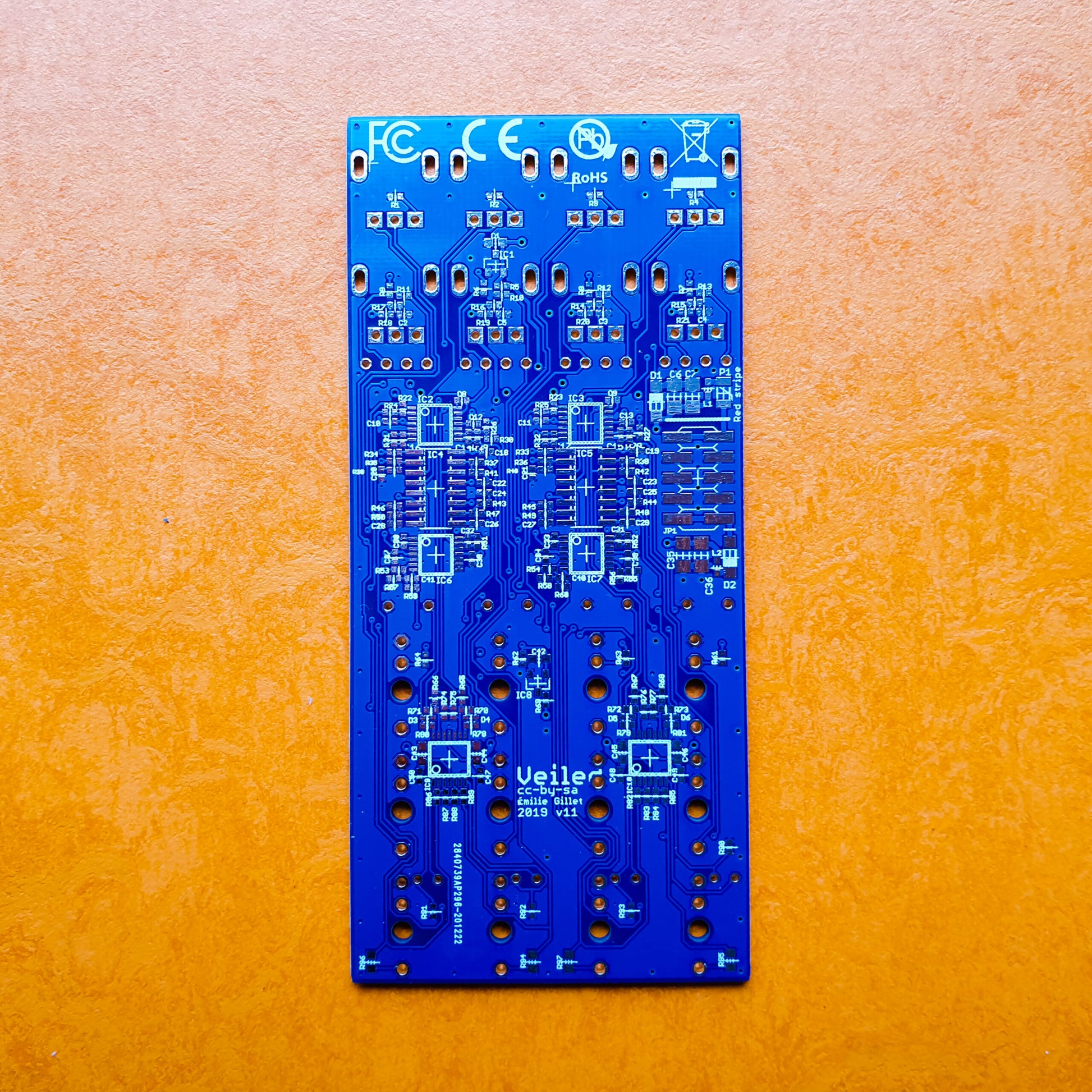

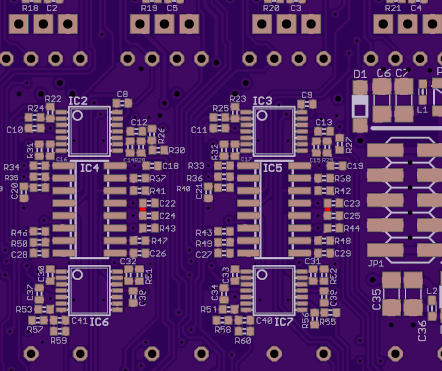

This can be fixed with a carefully positioned solder bridge between C22+C24 and C23+C25 (see pic for details)

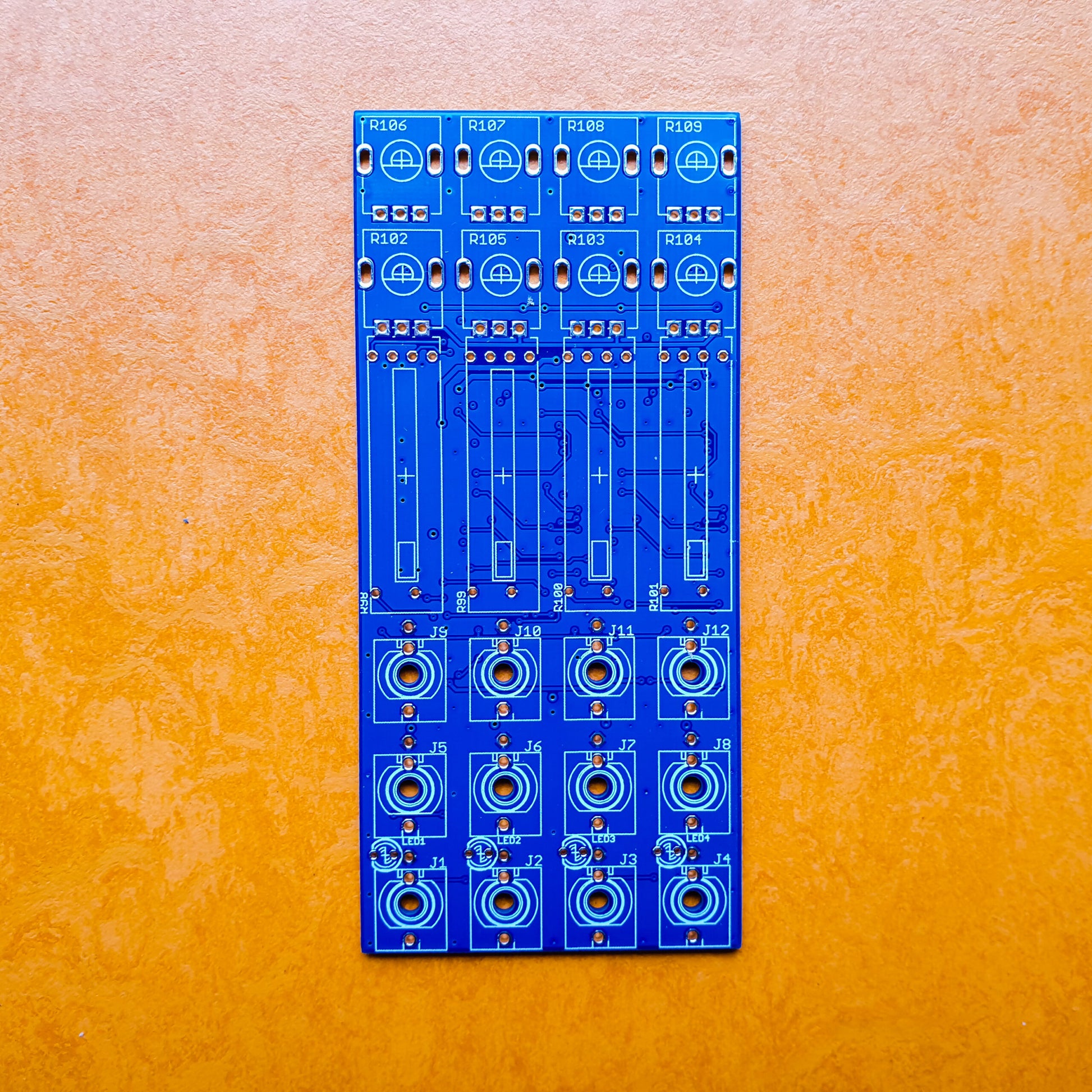

The pcb doesn't have holes for the panel stand-offs so you will either need to drill holes or just glue plastic standoffs to the pcb (they fit very snugly between the tall trimmer pots so it's pretty sturdy.

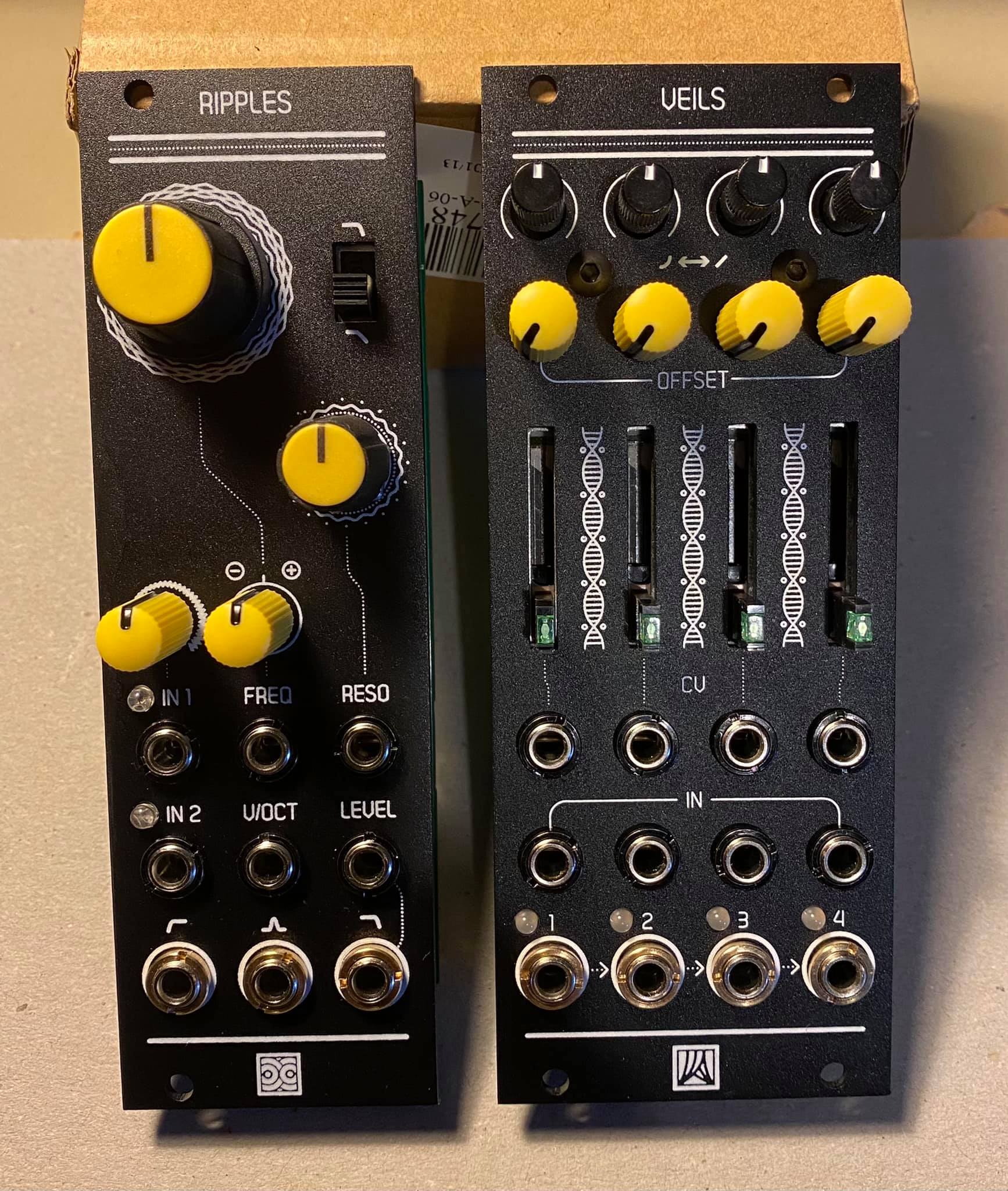

Features

The cornerstones of modular patches

VCAs are absolutely essential in a modular system, for example for:

Shaping the amplitude or timbre of a tone with an envelope.
Animating a mixture of several oscillators.
Controlling the amount of filter modulation with a random source or a touch controller.
Applying an envelope on the linear FM signal hitting an oscillator.

An updated classic

More compact footprint (10-HP), with sliders instead of knobs for the main gain/CV control.
Gain indicator LED.
Positive offset control (0 to 8V) for direct use of bipolar modulation sources.

Specifications

- All inputs DC-coupled.
- All inputs handle audio-rate signals.
- Input impedance: 100k for all inputs.
- Gain scale: a +5V CV translates to a gain of 1 (0dB), both in linear and in exponential mode.
- Large gains above +20dB (sufficient for amplifying line-level signals) achievable in exponential mode.
- Offset control adding an adjustable voltage from 0 to 8V to the gain CV.

Code (AVR projects): GPL3.0.

Code (STM32F projects): MIT license.

Hardware: cc-by-sa-3.0

By: Emilie Gillet (emilie.o.gillet@gmail.com)
