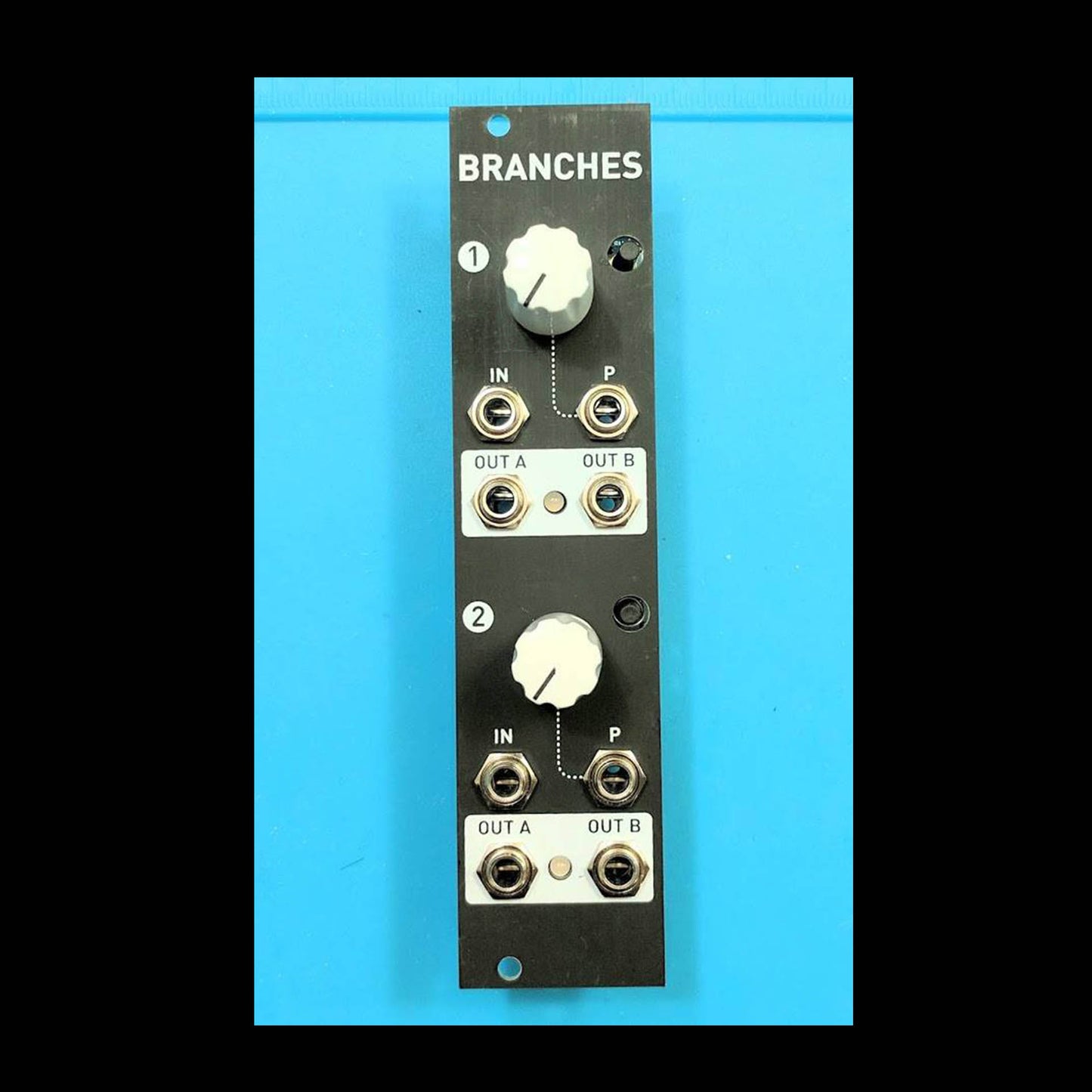

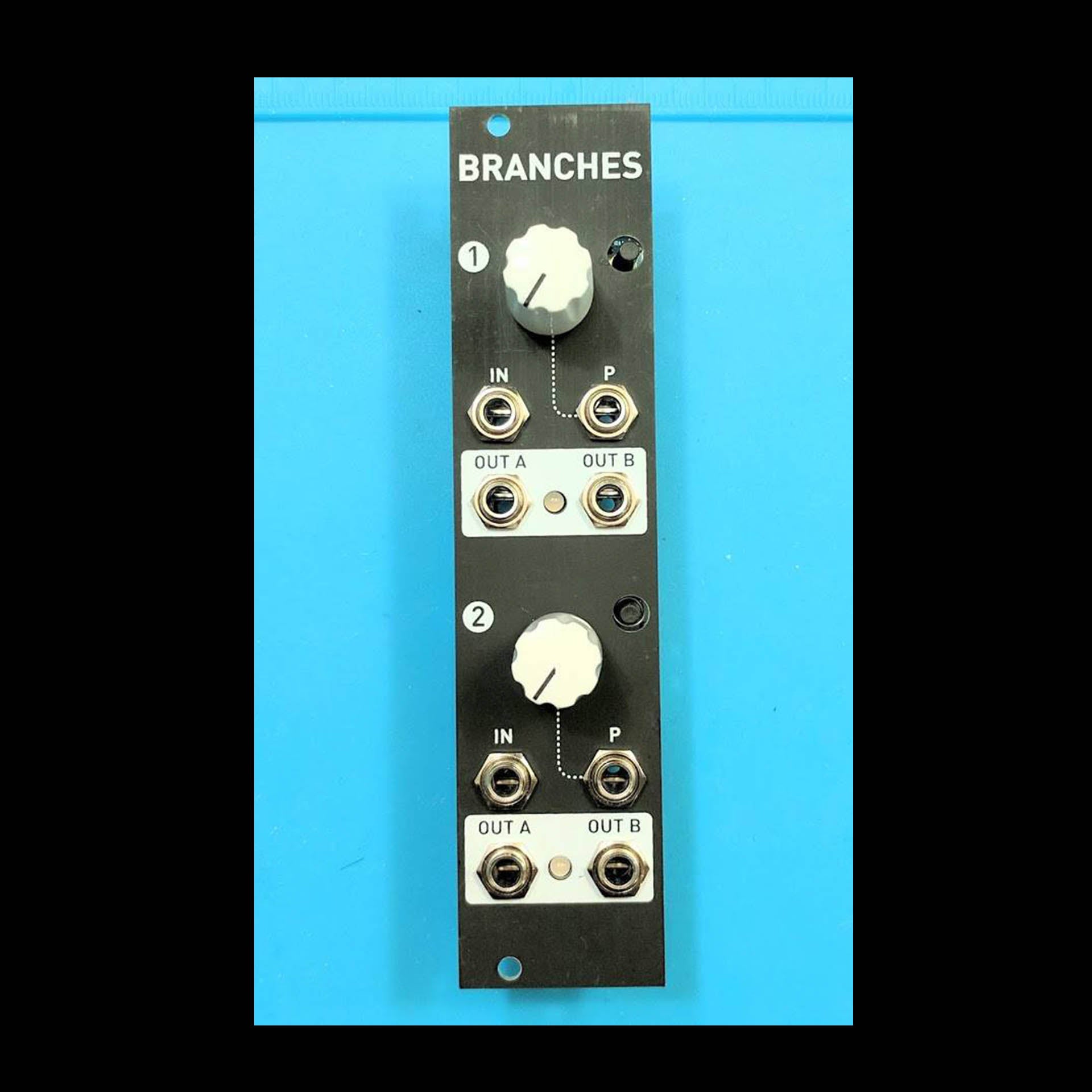

BRANCHES / dual bernoulli gate

Github - BOM

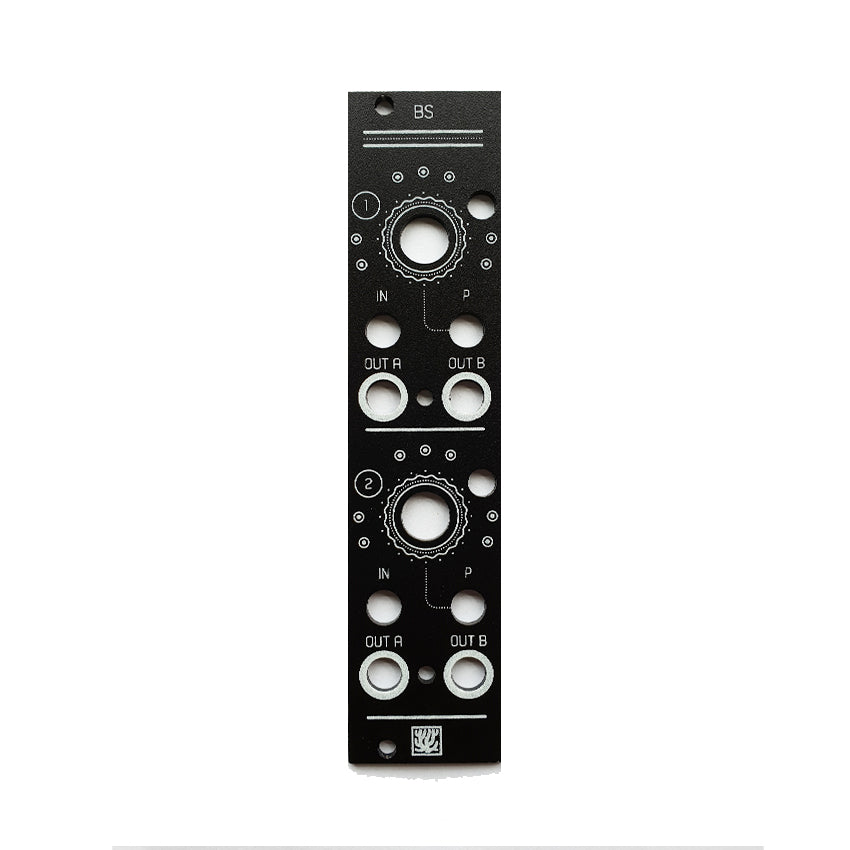

IMPORTANT!!! - The panel will not fit an official Branches module unless you change the leds.

Twigs (alternate Branches firmware)

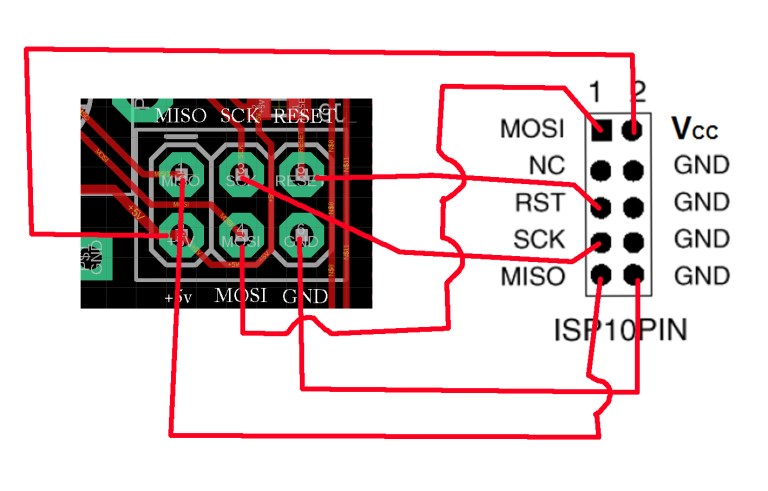

How to upload firmware

Features

Liven up your patches

• Randomly skip steps in a sequence, triggers in a rhythmic pattern.
• Dispatch rhythmic events to two instruments or sub-patches.
• A building block for large generative patches.
• An abrasive digital noise source at audio rates!

Specifications

• Gate inputs: 100k impedance, 0.6V threshold.
• CV inputs: 100k impedance, +/- 5V.
• Outputs: +5V for the HIGH level.
• Response time: 15µs.

Code (AVR projects): GPL3.0.

Code (STM32F projects): MIT license.

Hardware: cc-by-sa-3.0

By: Emilie Gillet (emilie.o.gillet@gmail.com)
