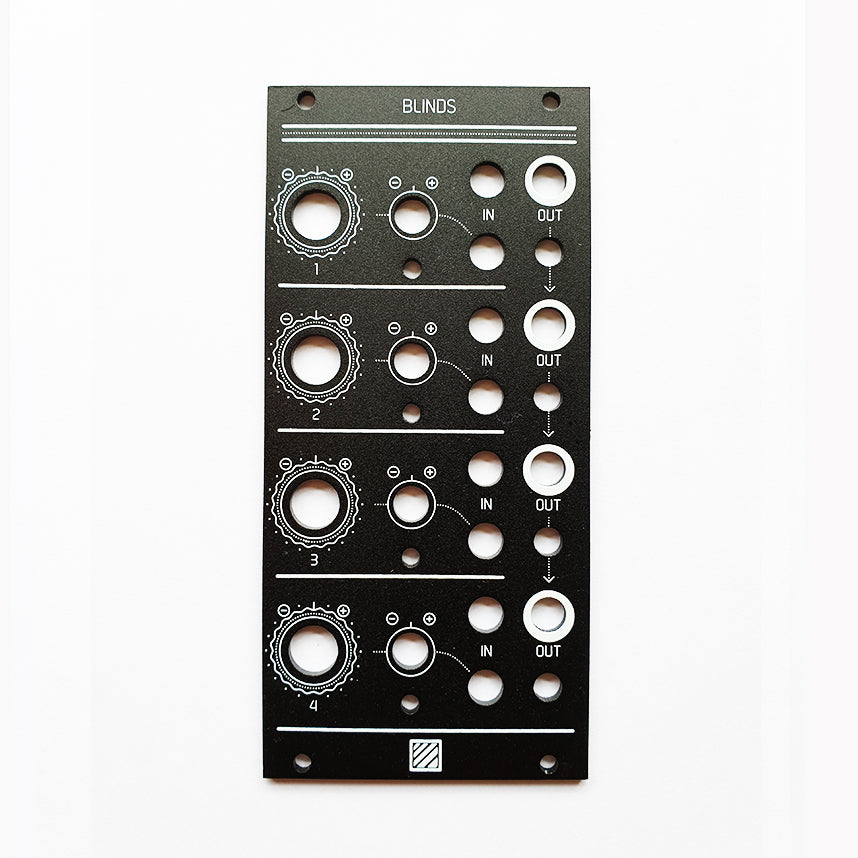

BLINDS

Github - BOM

Features

A hub for your modulations

• Scale, invert and offset up to four modulation signals.
• Mix up to four CVs or audio sources.
• Multiply (ring-modulate) two audio sources, with adjustable carrier rejection.
• "who can do more can do less": each channel can be used as a plain VCA.

Specifications

• All inputs DC-coupled.
• All inputs handle audio-rate signals.
• Input impedance: 100k for all inputs.
• CV offset range: +/- 5V.
• Gain scale: linear, a +5V CV translates to a gain of 1.
• Gain range: +/- 2.

Code (AVR projects): GPL3.0.

Code (STM32F projects): MIT license.

Hardware: cc-by-sa-3.0

By: Emilie Gillet (emilie.o.gillet@gmail.com)
