JAKPLUGG

TWIIGS / dual Branches

TWIIGS / dual Branches

Regular price £7.99 GBP
Regular price Sale price £7.99 GBP
Sale Sold out
Options
Quantity

Quad Bernoulli Gate

EITHER/OR

A Bernoulli gate takes a logic signal (trigger or gate) as an input, and routes it to either of its two outputs according to a random coin toss.

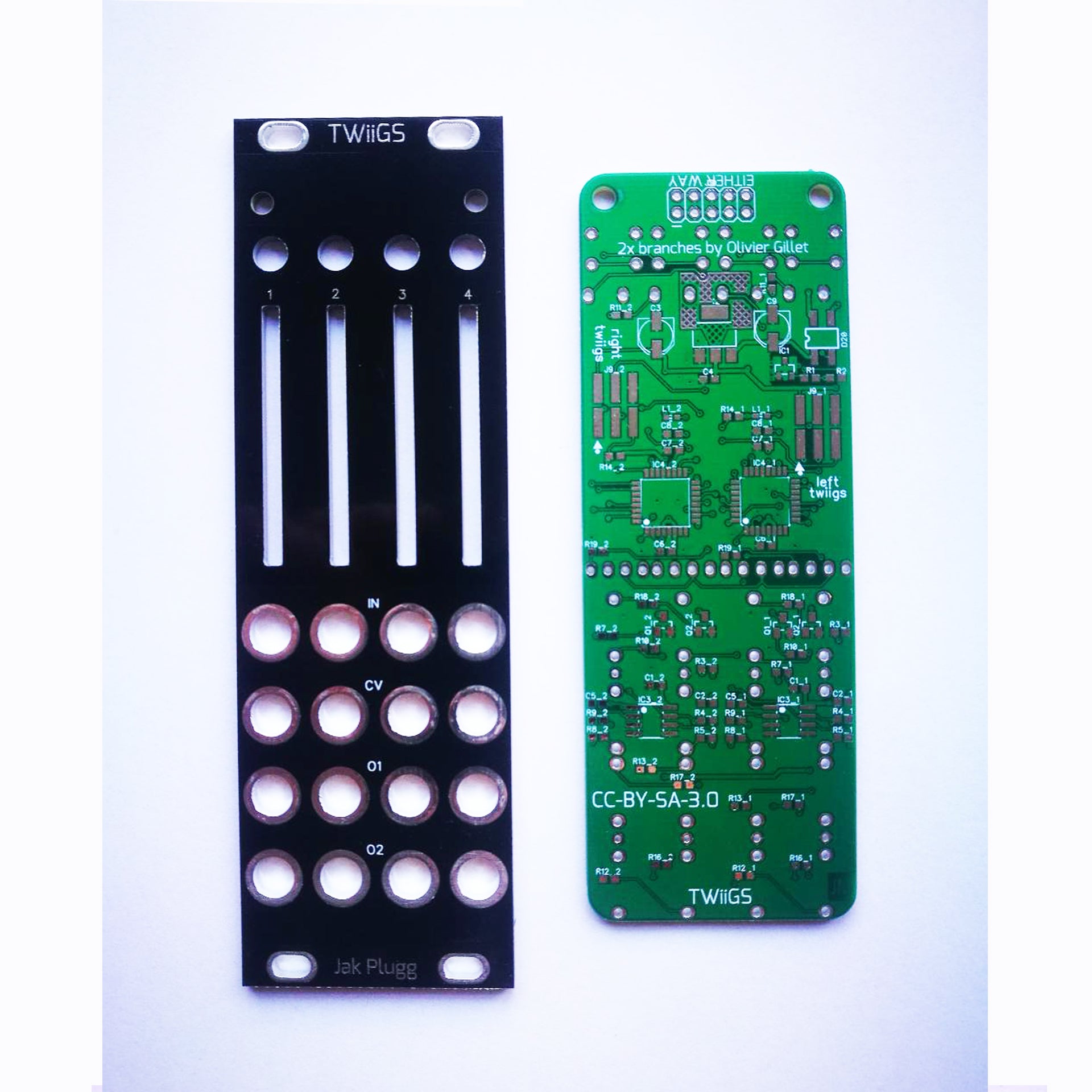

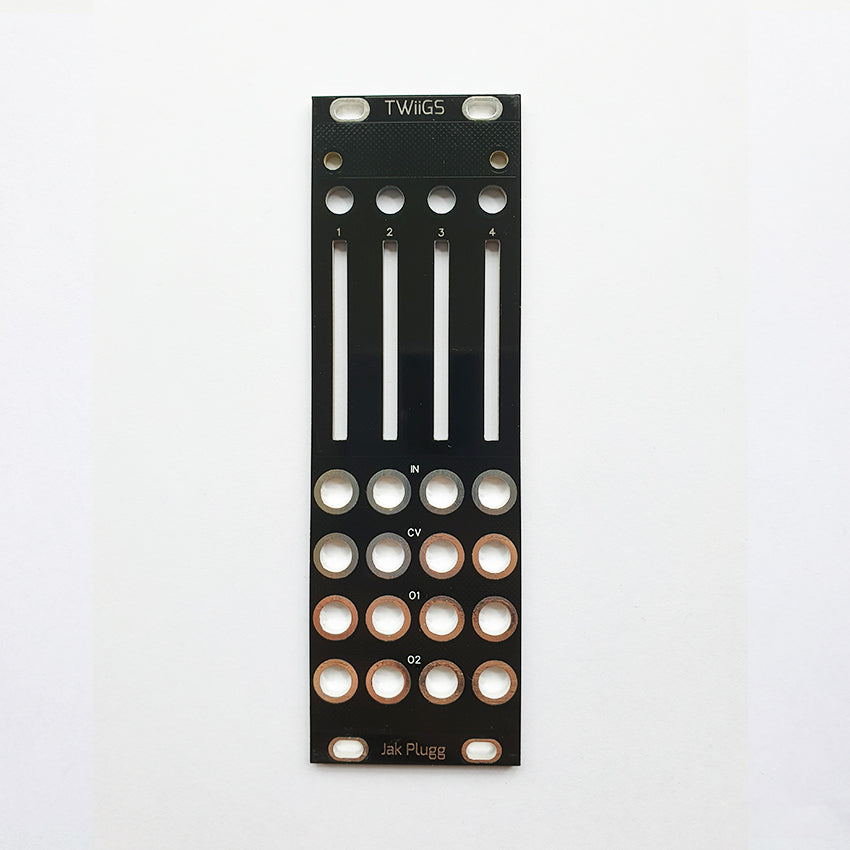

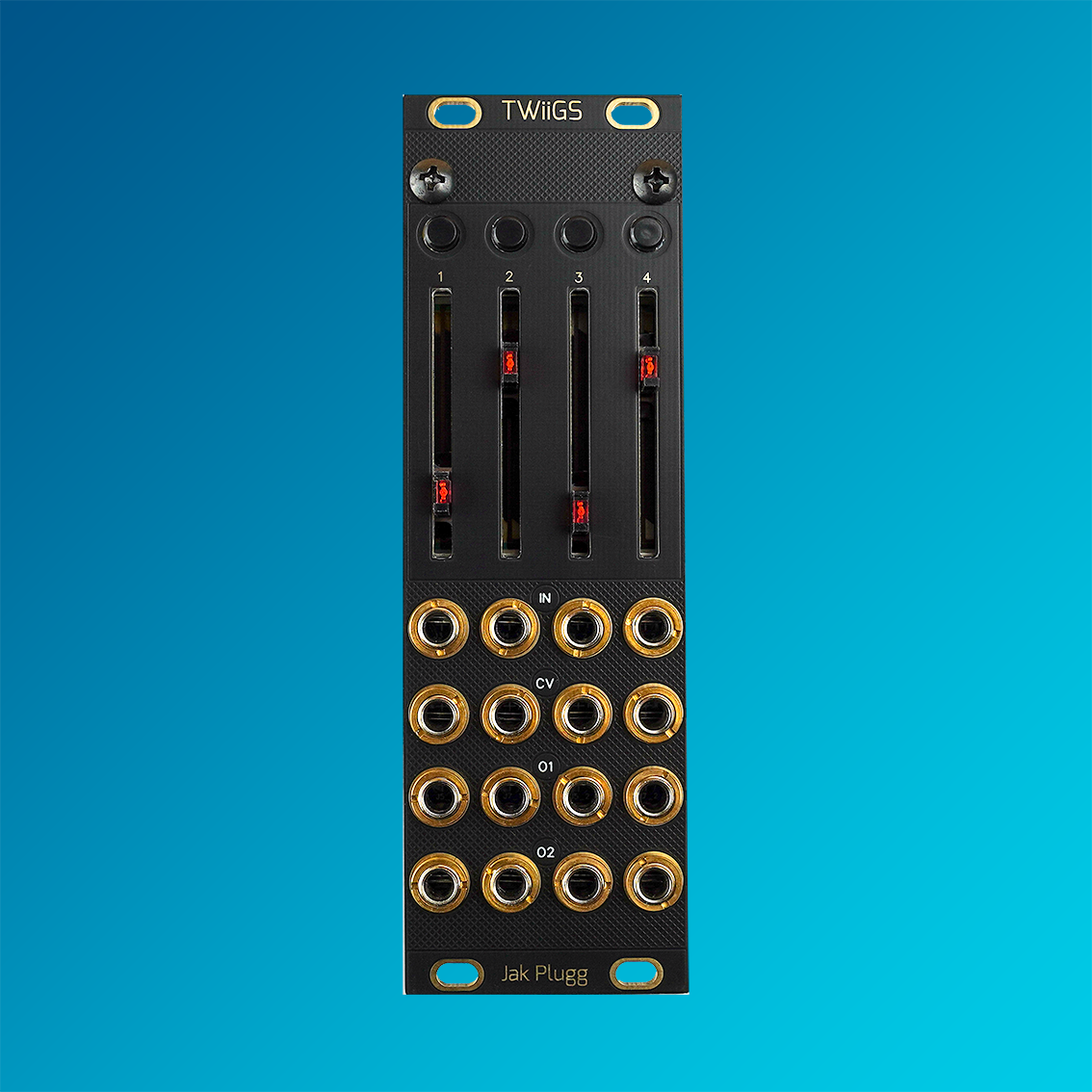

Twiigs packs four such gates in a small 8-HP panel. The slider and CV input on each channel controls the probability of routing the gate to either outputs, from 100% output A, 0% output B; to 0% output A, 100% output B.

All 4 inputs are normalled in a chain.

TWIIGS is the equivalent of two Mutable Instruments Branches modules side by side with sliders instead of knobs.

Branches designed by Emilie Gillet for Mutable Instruments

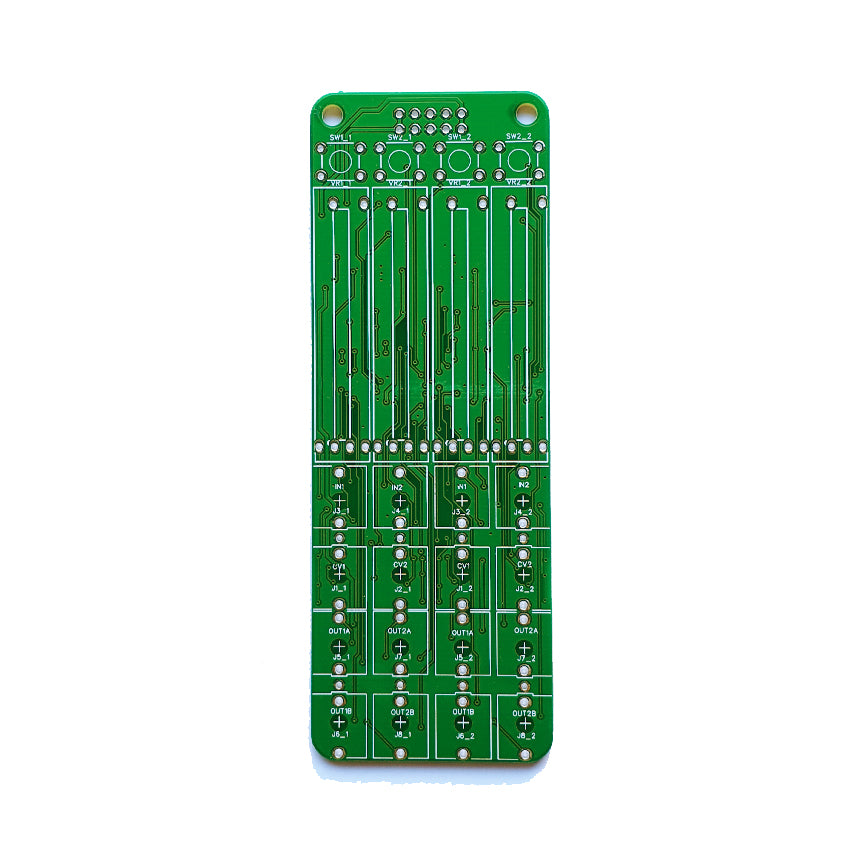

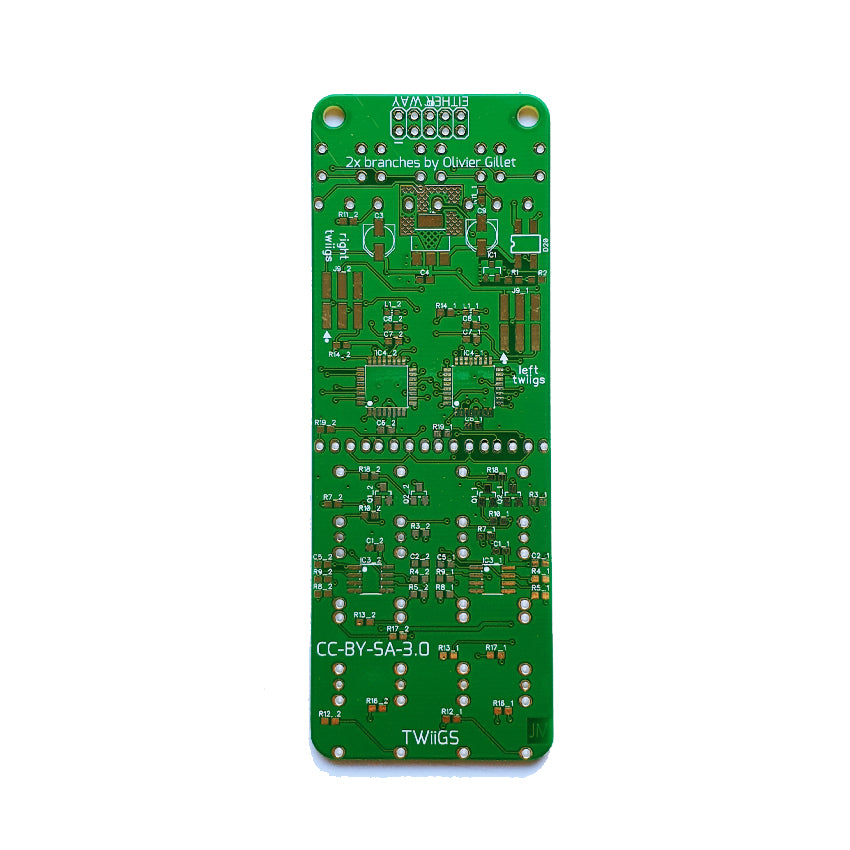

The Twiigs pcb is pre-programmed with Branches firmware on both sides.

Original design by E.Gillet for Mutable Instruments
C-by-SA Emilie Gillet

PCB redesign by J. Matheson
