MONSOON

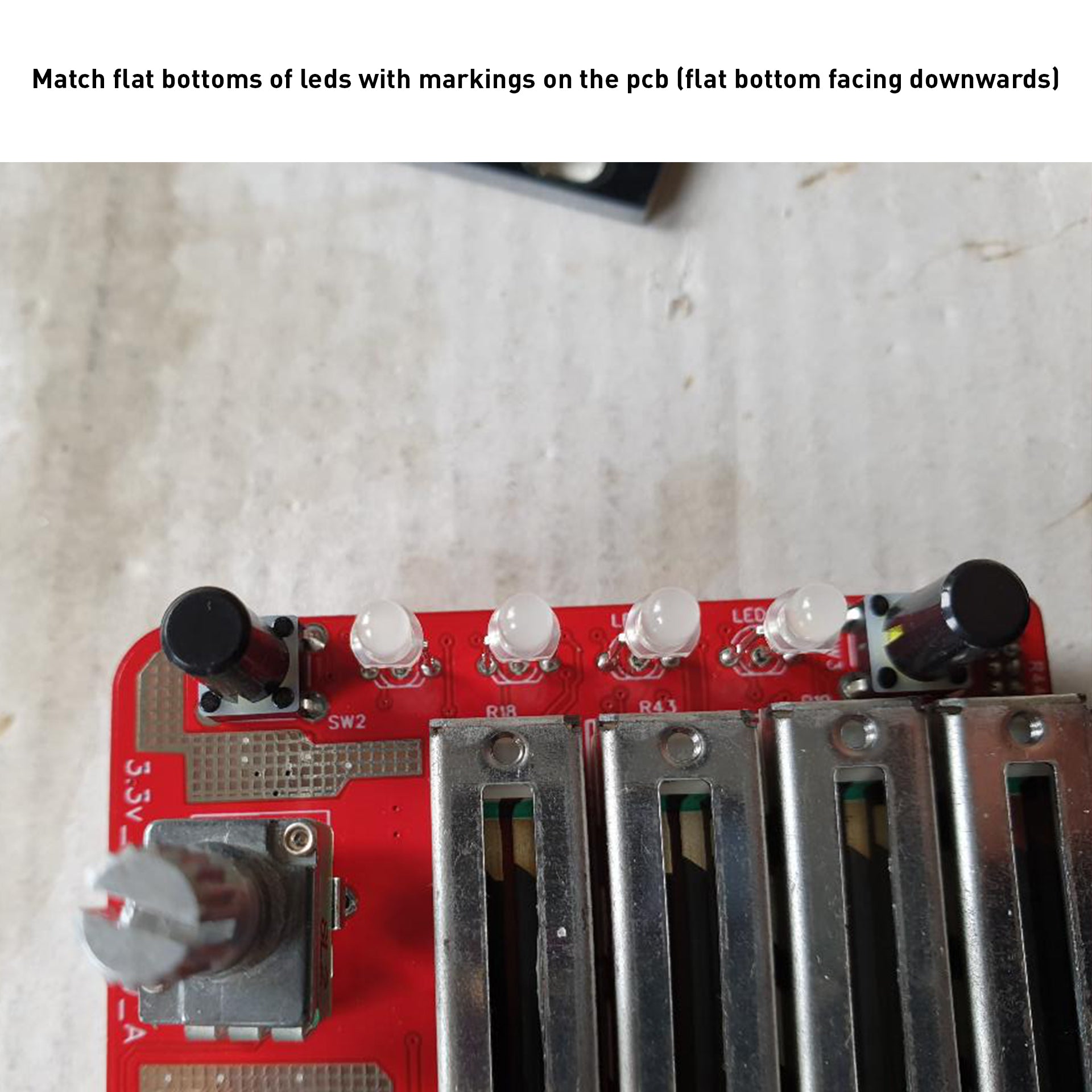

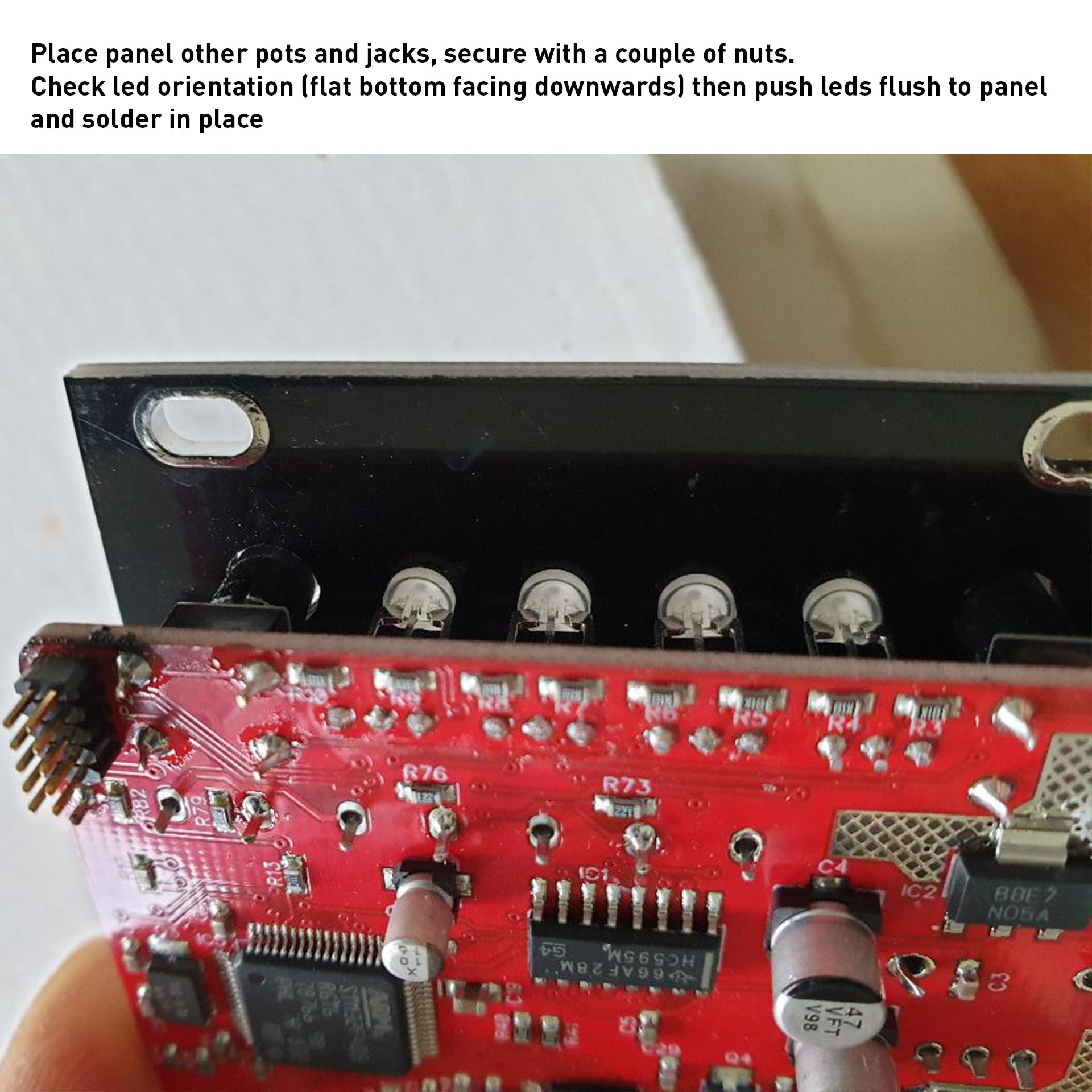

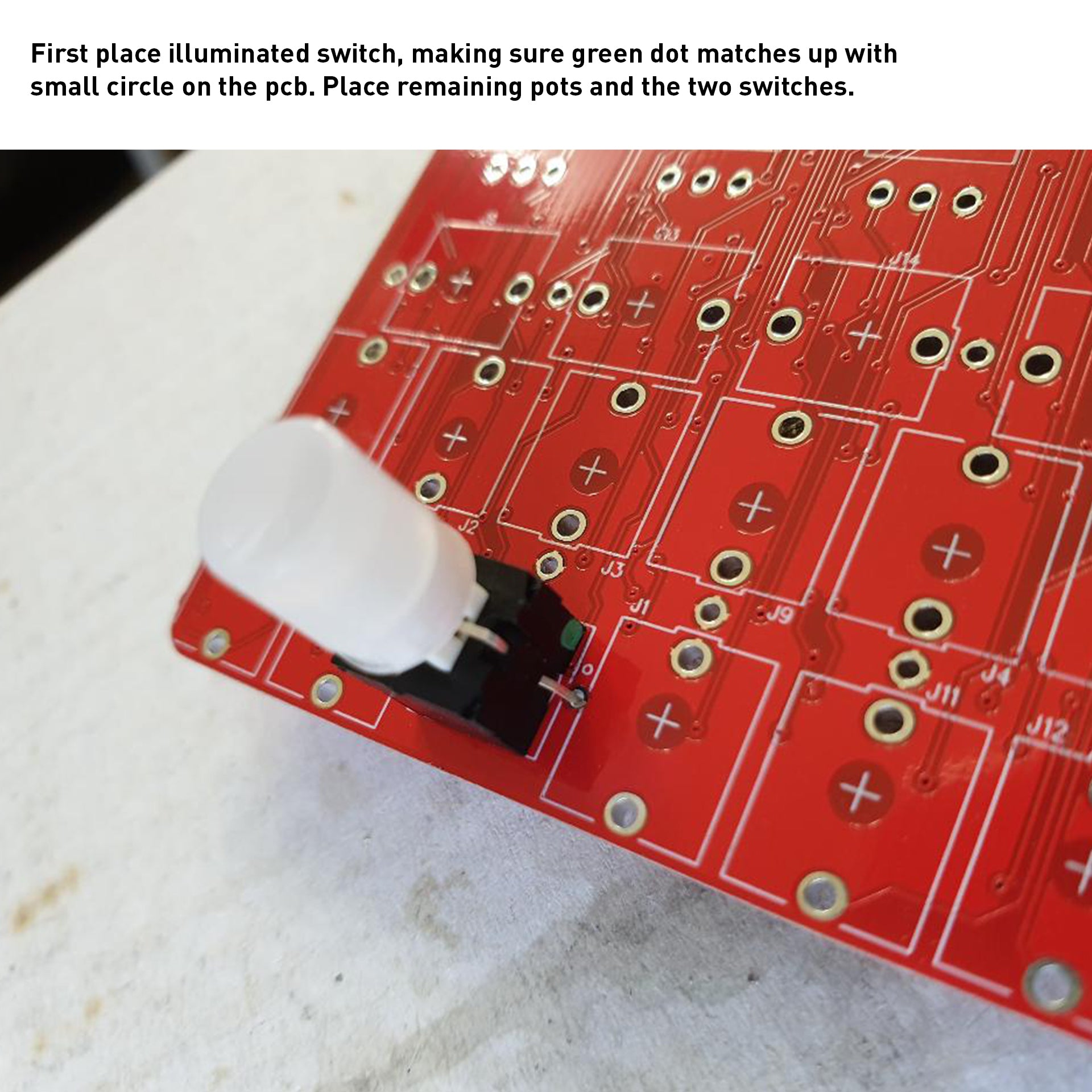

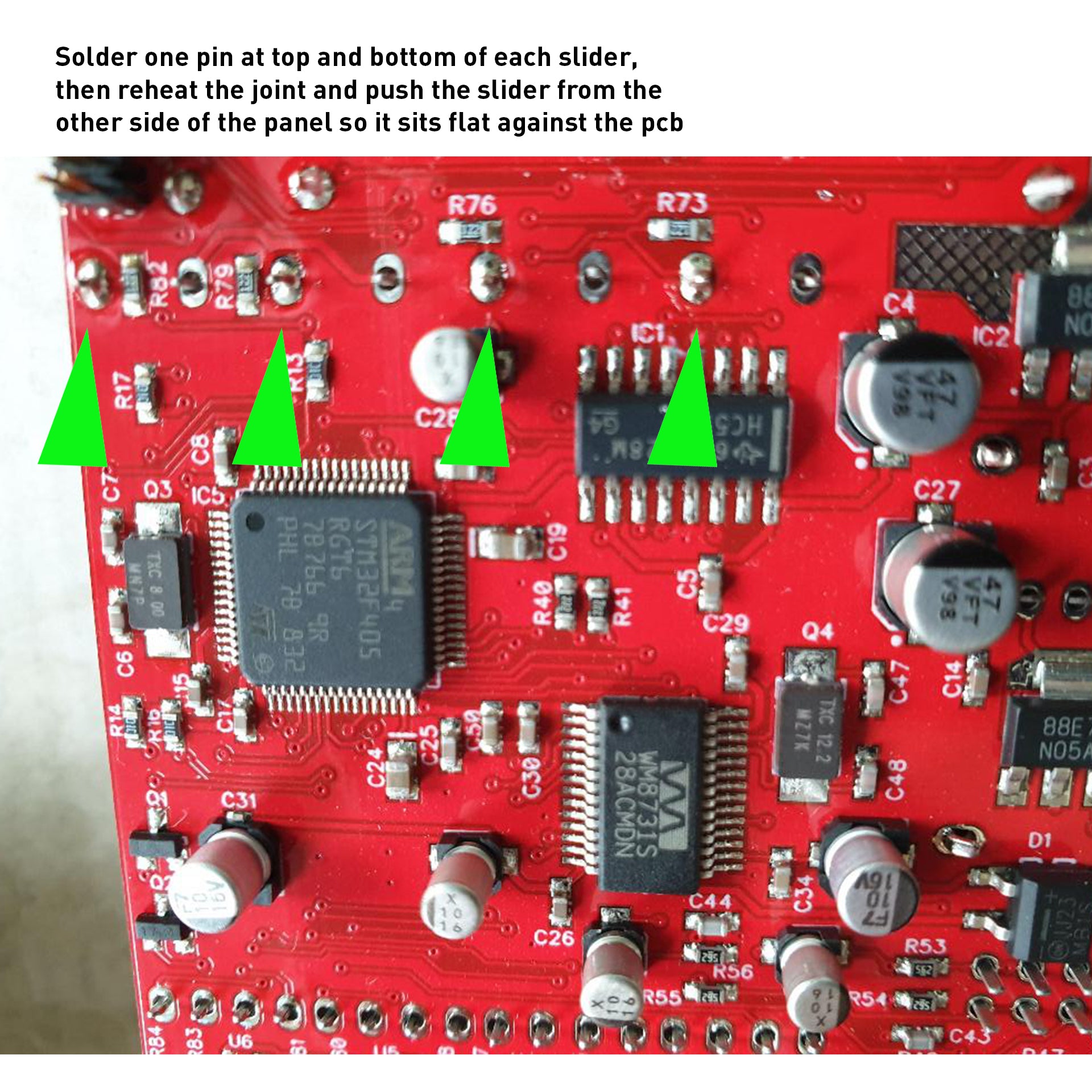

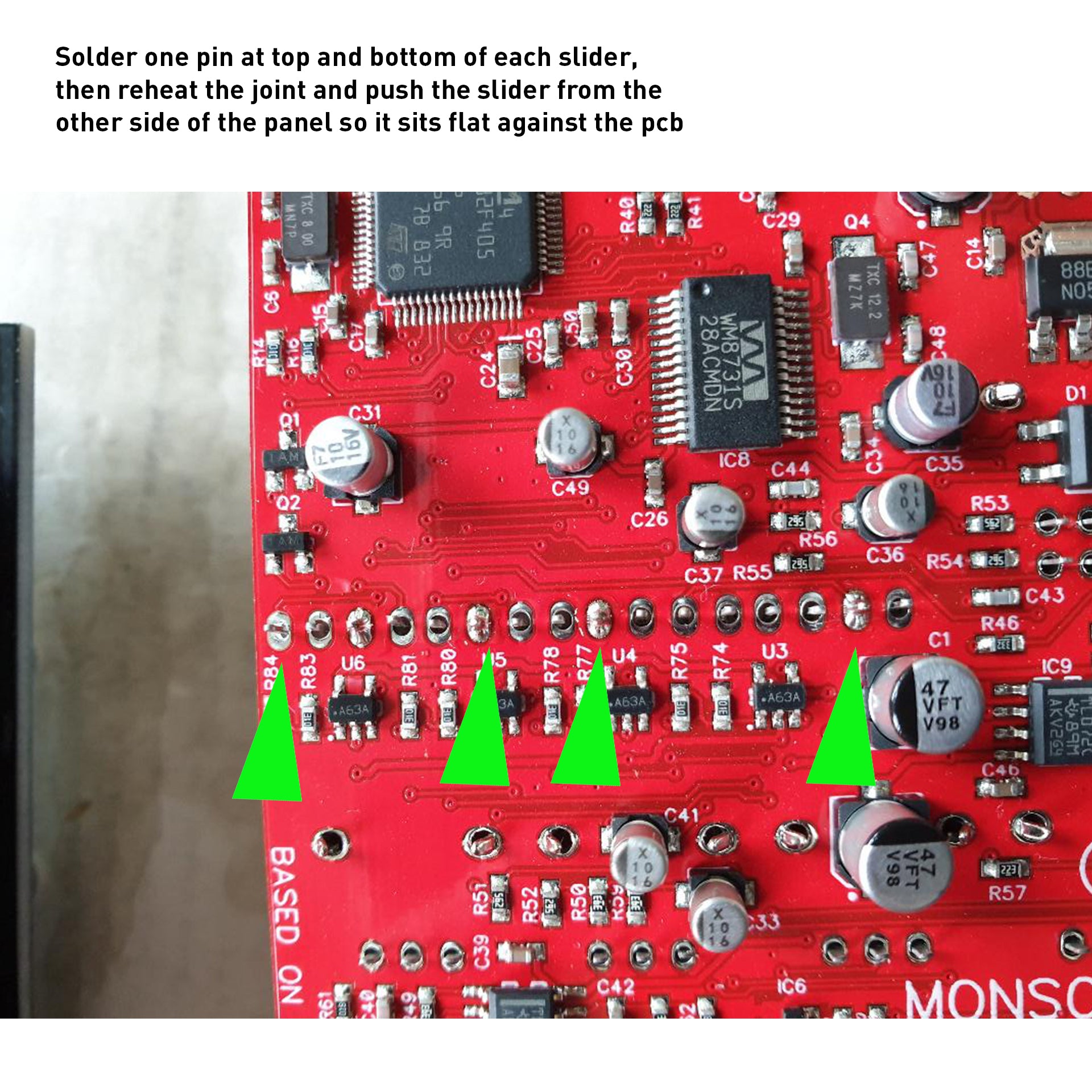

Monsoon Parasites Cheatsheet \n \nThis listing is for a full kit with SMD pre soldered. Includes power cable and mounting screws. \n \nParasites firmware is pre installed, all you have to solder are the leds/jacks/pots/switches. \n \nPlease note the polarity of the Freeze button that is marked on the pcb! \n \nROUND LED ORIENTATION : See gallery images \n \nSLIDER LED ORIENTATION \n \nPull out the leds that are in the sliders, cut the pins on the included two pin leds to the same length and push into the slider. \n \nSend a positive voltage to the appropriate CV control for each slider, if the led lights red pull it out and flip it over. \n \nSee product gallery for build instructions \n \nYou will have to calibrate the module yourself but it is a simple procedure. \n \nHold down the right hand button while you power on your case. \n \nsend 1V to the v/oct input \n \npress the edit button \n \nsend 3V to the v.oct input \n \npress the edit button again \n \nDone! \n \nMonsoon is a 12hp version of Mutable Instruments classic Clouds. \n \nClouds - C-by-SA ƒmilie Gillet \n \nMonsoon features sliders for the four main controls with bipolar leds to give visual feedback of the cv amount, and four pots with cv inputs for the different effect parameters (wet/dry - stereo width - feedback - reverb amount) that were only accessible with repeated button pushes on the original. \n \nRedesign by Jakplugg Open Source from a concept by Pusherman's Philip Wise. \n \nAll SMD is factory mounted. \n \n
