DIY PROJECT PANEL

4HP black panel for your own Eurorack modular DIY project

Updated version with extra jack holes, potentiometer scales and 2.54mm pitch stripboard compatibility.

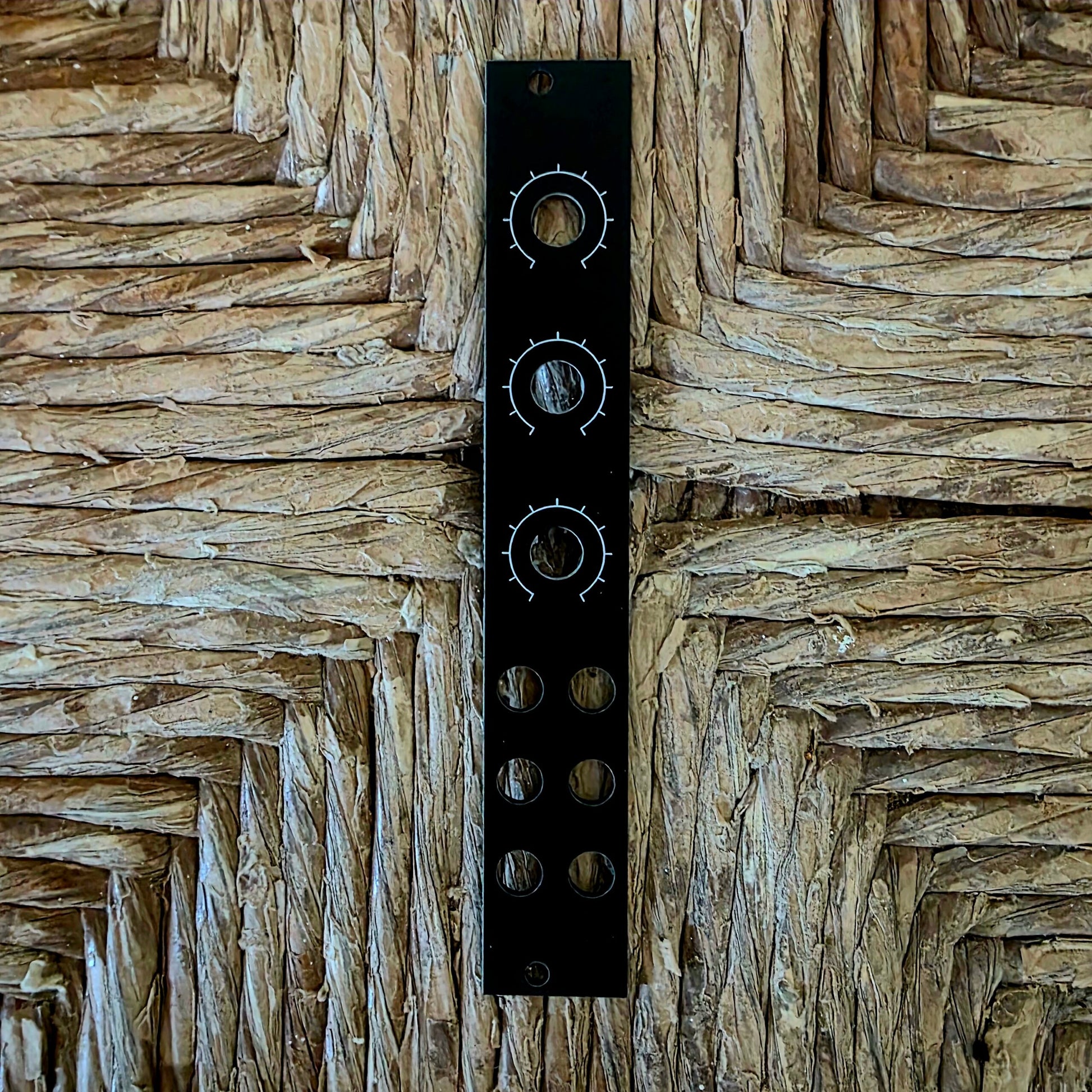

Panel is FR4 material and has pre drilled M3 holes for mounting into a rack, plus 3x 7.2mm holes for potentiometers and 6x 6.2mm holes for jack sockets. The holes are spaced so that Thonkiconn jacks and 9mm Alpha pots can be stripboard mounted. Potentiometers can be mounted with legs down or to one side.

Suitable sized switches can also be mounted in the jack holes, but if you are using stripboard, some modification to the board will be needed.

Potentiometer holes have printed scales around them. If you don’t want these the panel can be flipped over and the reverse is completely blank.

Panel thickness is 1.6mm
