I2C2 MIDI

GITHUB/BOM

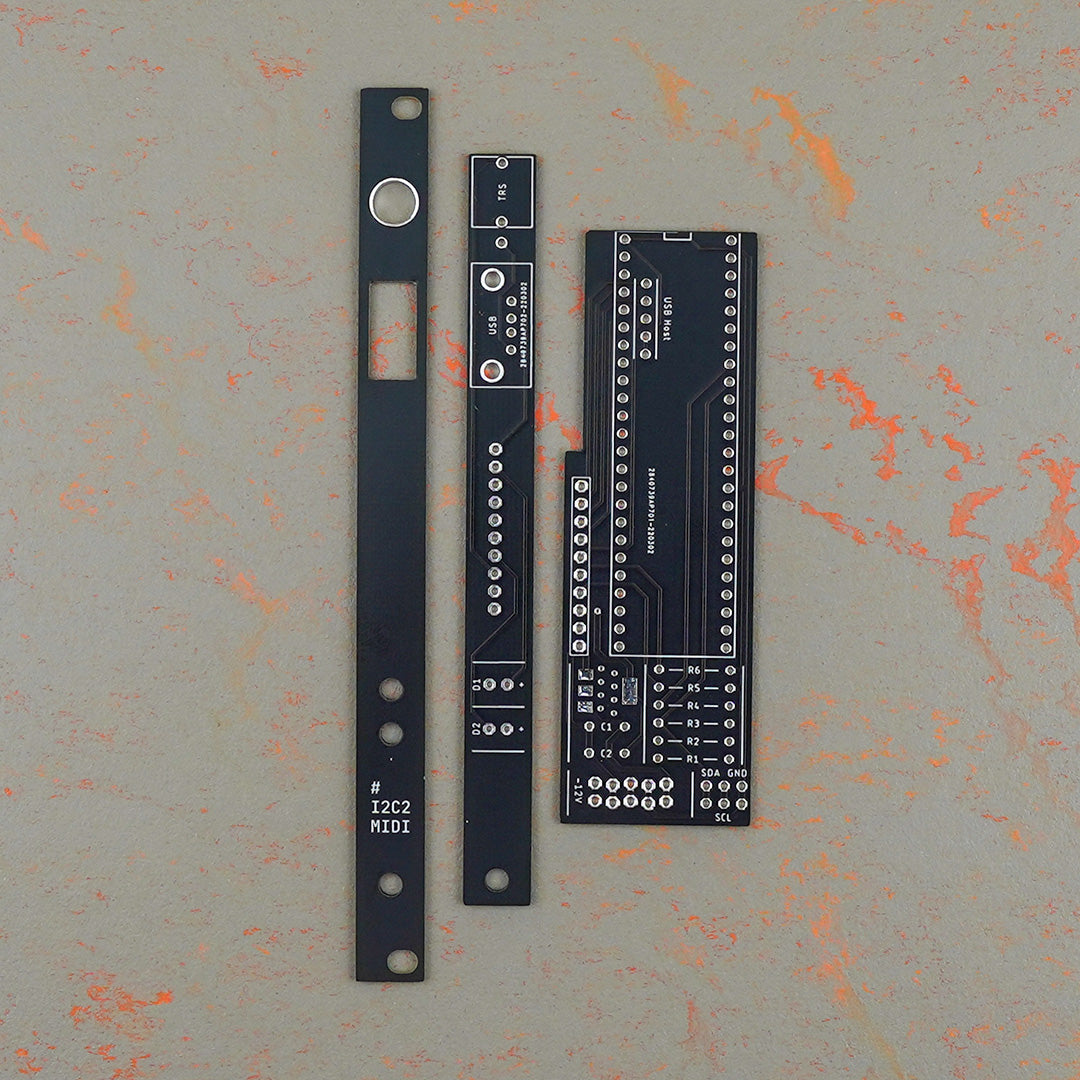

Version mkII

i2c2midi is a DIY open source 2 hp eurorack module that speaks I2C and MIDI.

i2c2midi bridges the gap between monome Teletype and external MIDI-enabled devices, using I2C:

It receives I2C messages from Teletype and converts them to MIDI notes, MIDI CC messages and other MIDI messages to control external devices like synths and effects.

It receives MIDI messages from external MIDI controllers and stores the values internally, which can be requested at any time by Teletype via I2C.

• Dedicated Teletype OPs: I2M

• MIDI out via TRS

• MIDI out and in via USB Host

• automatic MIDI Note Off messages (settable note duration per note)

• 8 voice polyphony per MIDI channel

• 16 MIDI channels simultaneously

• 2 HP, 42 mm depth


i2c2midi lines community thread: \nhttps://llllllll.co/t/i2c2midi-a-diy-module-that-translates-i2c-to-midi/

Please get the Teletype Beta firmware here:

https://llllllll.co/t/i2c2midi-a-diy-module-that-translates-i2c-to-midi/40950/229
